ST16C580

Features: · Pin to pin and functionally compatible to the Industry Standard 16550· 2.97 to 5.5 volt operation· 1.5 Mbps transmit/receive operation (24MHz)· 16 byte transmit FIFO· 16 byte receive FIFO with error flags· Automatic hardware/software flow control· Programmable Xon/Xoff characters· Inde...

product image

ST16C580 Picture
See larger image
SeekIC No. : 004506267 Detail

ST16C580: Features: · Pin to pin and functionally compatible to the Industry Standard 16550· 2.97 to 5.5 volt operation· 1.5 Mbps transmit/receive operation (24MHz)· 16 byte transmit FIFO· 16 byte receive FIF...

ST16C580 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ST16C580
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Pin to pin and functionally compatible to the Industry Standard 16550
· 2.97 to 5.5 volt operation
· 1.5 Mbps transmit/receive operation (24MHz)
· 16 byte transmit FIFO
· 16 byte receive FIFO with error flags
· Automatic hardware/software flow control
· Programmable Xon/Xoff characters
· Independent transmit and receive control
· Software selectable Baud Rate Generator prescaleable clock rates of 1X or 4X
· Four selectable transmit/receive FIFO interrupt trigger levels
· Standard modem interface or Infrared IrDA encode/ decoder interface
· Sleep mode ( 200mA stand-by )
· Low operating current ( 1.2mA typ.)




Pinout

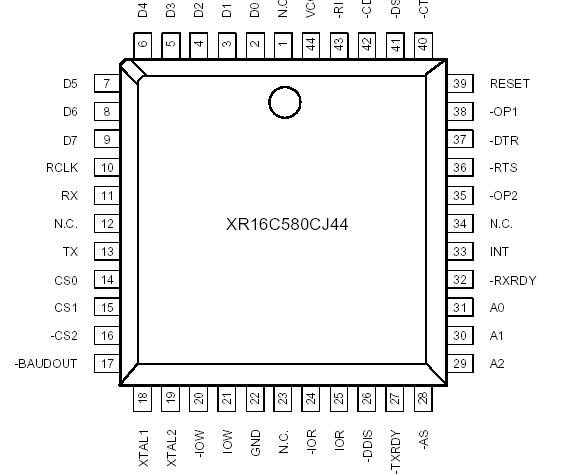

Connection Diagram




Specifications

Specifications
CH 1
CPUInterface Intel
Data Rate@5/3.3/2.5V 1.5/0.5/na
Tx/RxFIFO(Bytes) 16/16
Tx/RxFIFOCtrs No
Tx/RxFIFOINT Trig 4 Levels/ 4 Levels
AutoRTS/CTS Yes
IrDaSup Yes
5VTolInputs No
Sup V 2.97-5.5
Pkgs TQFP-48


Supply range........................................................................................... 7 Volts
Voltage at any pin GND ....................................................- 0.3 V to VCC +0.3 V
Operating temperature ........................................................-40° C to +85° C
Storage temperature ...........................................................-65° C to 150° C
Package dissipation .............................................................................500 mW




Description

Description

The ST16C5801 is a universal asynchronous receiver and transmitter (UART) and is pin compatible with the ST16C550 UART. The 580 is an enhanced UART with 16 byte FIFO's, automatic hardware/software flow control and data rates up to 1.5Mbps. Onboard status registers provide the user with error indications and operational status. Modem interface control is included and can be optionally configured to operate with the Infrared (IrDA) encoder/decoder. The system interrupts may be tailored to meet user requirements. An internal loop-back capability allows onboard diagnostics.

The ST16C580 is available in 40 pin PDIP, 44 pin PLCC, and 48 pin TQFP packages. It is fabricated in an advanced CMOS process to achieve low drain power and high speed requirements.

NOTE: 1Covered by U.S. Patent #5,649,122.

For UART technical support or to obtain an IBIS model for this product, please email Exar's UART Technical Support group.
