ST1803DHI

Transistors Switching (Resistor Biased) NPN Hi-Volt Fast Sw

product image

ST1803DHI Picture
See larger image
SeekIC No. : 00224071 Detail

ST1803DHI: Transistors Switching (Resistor Biased) NPN Hi-Volt Fast Sw

ST1803DHI Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ST1803DHI
Mfg:
STMicroelectronics
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Configuration : Single Transistor Polarity : NPN
Mounting Style : SMD/SMT Package / Case : SOT-93
Collector- Emitter Voltage VCEO Max : 600 V Continuous Collector Current : 10 A
Peak DC Collector Current : 10000 mA Power Dissipation : 50 W
Maximum Operating Temperature : + 150 C Packaging : Tube

Description

Typical Input Resistor :
Typical Resistor Ratio :
Maximum Operating Frequency :
Transistor Polarity : NPN
Continuous Collector Current : 10 A
Power Dissipation : 50 W
Maximum Operating Temperature : + 150 C
Mounting Style : SMD/SMT
Configuration : Single
Peak DC Collector Current : 10000 mA
Packaging : Tube
Package / Case : SOT-93
Collector- Emitter Voltage VCEO Max : 600 V


Features:

NEWSERIES, ENHANCHED
PERFORMANCE
FULLYINSULATEDPACKAGEFOR EAS
MOUNTING
INTEGRATEDFREEWHEELINGDIODE
HIGHVOLTAGECAPABILITY
HIGHSWITCHINGSPEED
TIGTHERhfe CONTROL
IMPROVEDRUGGEDNESS


Application

HORIZONTAL DEFLECTION FORCOLOR TV

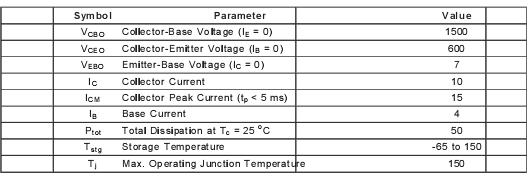

Specifications

Connection Diagram


Description

The ST1803DHI is manufactured using Diffused Collector technologyfor more stableoperation Vs base drive circuit variations resulting in very low worst casedissipation.
