Features:

·SUPPLY VOLTAGE RANGE: 4.5 TO 5.5V
·SUPPLY CURRENT NO LOAD (TYP): 1.5mA
·TRASMITTER OUTPUT VOLTAGE SWING (TYP): ± 9V
·TRANSITION SLEW RATE (TYP.): 12V/ms
·RECEIVER PROPAGATION DELAY (TYP.): 0.1ms
·COMPATIBLE WITH MAX202
·RECEIVER INPUT VOLTAGE RANGE: ± 30V
·DATA RATE (TYP.): 400Kbp/s
·OPERATING TEMPERATURE RANGE: -40 TO 85 °C, 0 TO 70°C


Pinout

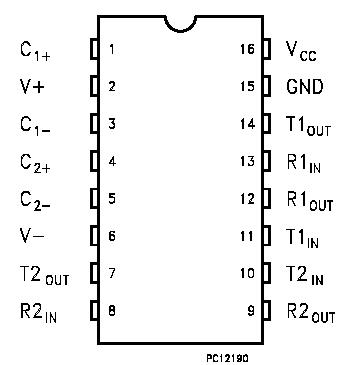

Connection Diagram


Specifications

Symbol Parameter Value Unit
VCC Supply Voltage -0.3 to 6 V
V+ Extra Positive Voltage (VCC -0.3) to 13.2 V
V- Extra Negative Voltage 0.3 to -13.2 V
TIN Transmitter Input Voltage Range -0.3 to (VCC + 0.3) V
RIN Receiver Input Voltage Range ± 30 V
TOUT Transmitter Output Voltage Range ± 15 V
ROUT Receiver Output Voltage Range -0.3 to (VCC + 0.3) V
TSCTOUT Short Circuit Duration on TOUT infinite



Description

The ST202 is a 2 driver, 2 receiver device following EIA/TIA-232 and V.28 communication standard. It is particularly suitable for applications where ± 12V is not available. The ST202 uses a single 5V power supply and only four external capacitors (0.1mF). Typical application are in: Portable Computers, Low Power Modems, Interfaces Translation, Battery Powered RS-232 Networks.
