ST207EH

Features:

` SINGLE +5v SUPPLY OPERATION
` 0.1F EXTENAL CHARGE PUMP CAPACITORS
` 500kbps DATE RATE UNDER LOAD
` LOWER SUPPLY CURRENT 1.5mA (TYP)
` IDEAL FOR HIGH SPEED RS-232 APPLICATIONS
` PACKAGED IN SO-24, SSO-24 AND TSSOP24
` ESD PROTECTION FOR RS-232 I/O PINS: ±15 KV HUMAN BODY MODEL

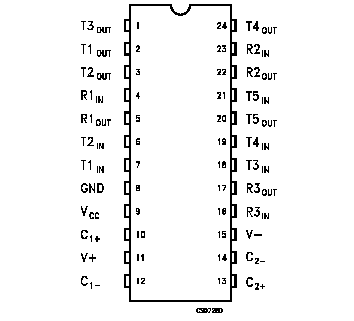

Pinout




Specifications

Symbol	Parameter	Value	Unit
VCC	Supply Voltage	6	V
V+	Extra Positive Voltage	(VCC - 0.3) to 13.2	V
V-	Extra Negative Voltage	13.2	V
TIN	Transmitter Input Voltage Range	-0.3 to (VCC + 0.3)	V
RIN	Receiver Input Voltage Range	± 20	V
TOUT	Transmitter Output Voltage Range	(V- - 0.3) to (V+ + 0.3)	V
ROUT	Receiver Output Voltage Range	-0.3 to (VCC + 0.3)	V
TSHORT	Short Circuit Durtion on TOUT	Continuous
Tstg	Storage Temperature Range	-65 to 150

Absolute Maximum Ratings are those values beyond which damage to the device may occur. Functional operation under these condition is
not implied. V+ and V- can have a maximum magnitude of +7V, but their absolute addition can not exceed 13 V.


Description

The ST207EH is a high speed enhanced multi-channel RS-232 line transceivers with improved electrical performance. The ST207EH is a superior drop-in replacement to our previous versions as well as popular industry standards. The device feature low-power CMOS construction and the charge pump circuitry that generates the ±10V RS-232 voltag elevels using 01mF charges pump capacitors. The ST207EH include a high transmission rate of 500Kbps, a lower supply current at 1.5mA typical (no load), and a superior ESD performance. The ESD tolerance has been improved for this device over ±15KV for HUMAN Body Model. The ST207EH cames in 24-pin SO, SSO and TSSOP packages.
