ST2225A-SS3

Features: Continuous brightness control Serial data input No load signal required for data latch Wide power supply operation TTL compatibility 35 outputs, 20mA capability Small package, SSOP48 and bare chip formApplicationIndustrial control indicator Relay driver Digital clock, thermometer, count...

product image

ST2225A-SS3 Picture
See larger image
SeekIC No. : 004506375 Detail

ST2225A-SS3: Features: Continuous brightness control Serial data input No load signal required for data latch Wide power supply operation TTL compatibility 35 outputs, 20mA capability Small package, SSOP48 and b...

ST2225A-SS3 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ST2225A-SS3
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

 Continuous brightness control
Serial data input
No load signal required for data latch
Wide power supply operation
TTL compatibility
35 outputs, 20mA capability
Small package, SSOP48 and bare chip form



Application

 Industrial control indicator
Relay driver
Digital clock, thermometer, counter, voltmeter
Instrumentation readouts


Pinout

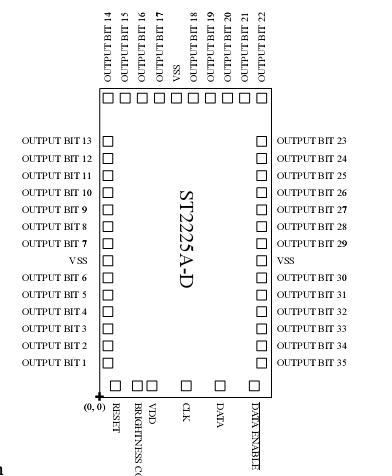

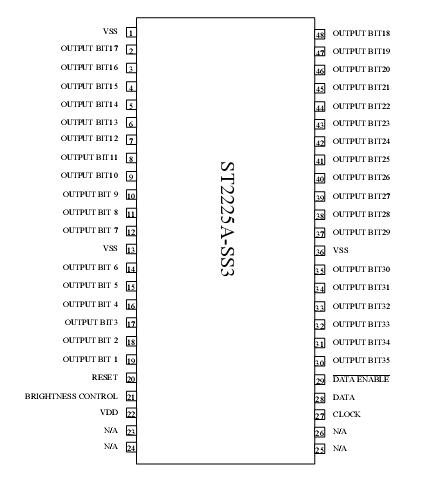

Connection Diagram Connection Diagram


Specifications

Voltage (any pin)........................Vss to Vss +12V
Power Dissipation (PD)
  +25......................................................1.52W
  +85....................................................790mW
Junction Temperature (Tj)........................+150
Storage Temperature (Ts)..........-65 to +150
Lead Temperature (soldering, 10 sec.).....+300


Description

The ST2225A LED display driver is a monolithic CMOS IC. In order to achieve continuous brightness control,the LED display brightness is controlled by setting a reference current through a variable resistor connected between a supply and a single pin.
