ST2378E

Features:

`HIGH SPEED: tPD = 15ns (MAX.) at T<sub>A</sub> = 85
           V<sub>L</sub> = 1.8V; V<sub>CC</sub> = 5.5V
`GUARANTEED DATA RATE:
           13Mbps (1.8V V_L V_CC 5.5V)
`LOW POWER DISSIPATION:
           I<sub>TS-VL</sub> = ITS-V<sub>CC</sub> = 1µA (MAX.) at T<sub>A</sub> = 85
           I<sub>QVL</sub> = 100µA (MAX.) at T<sub>A</sub> = 85
           I<sub>QCC</sub> = 10µA (MAX.) at T<sub>A</sub> = 85
`OUTPUT IMPEDANCE:
           |I_OHA| = 20 µA (MIN.) at VL=1.8V VCC=5.5V
           I_OLA = 1.0 mA (MIN.) at VL=1.8V VCC=5.5V
`BIDIRECTIONAL LEVEL TRANSLATION
`TOTEM POLE AND OPEN DRAIN DRIVING FOR I2C COMMUNICATIONS
`5V TOLERANT ON ENABLE PIN
`THERMAL SHORT-CIRCUIT PROTECTION
`WIDE OPERATING VOLTAGE RANGE:
           V<sub>L</sub>(OPR) = 1.71V to VCC
           V<sub>CC</sub>(OPR) = 1.71V to 5.5V
`ESD PERFORMANCE: HBM > 15KV ESD PROTECTION ON I/OV_CC LINES
`LEADFREE FLIPCHIP AND TSSOP PACKAGES

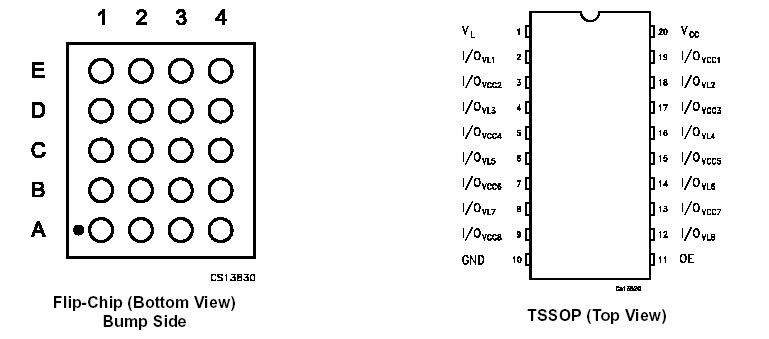

Pinout




Specifications

Symbol	Parameter	Value	Unit
VL	Supply Voltage	-0.3 to VCC	V
VCC	Supply Voltage	-0.3 to +7.0	V
VOE	DC Control Input Voltage	-0.3 to +7.0	V
VI/OVL	DC I/OVL Input Voltage (OE = Gnd or VL)	-0.3 to VL + 0.3	V
VI/OVCC	DC I/OVCC Input Voltage (OE = Gnd or VL)	-0.3toVCC + 0.3	V
IIK	DC Input Diode Current (OE Control Pin)	− 20	mA
IIOVL	DC Output Current	± 25	mA
IIOVCC	DC Output Current	± 25	mA
ISCTOUT	Short Circuit Duration I/OVL, I/OVCC Driven from 40mA Source	Continuous	mA
ICCB	DC VCC or Ground Current	± 100	mA
Pd	Power Dissipation(*)	500	mW
Tstg	Storage Temperature	-65 to +150
TL	Lead Temperature (10 sec)	300

Description

The ST2378E is a ±15kV ESD-protected level translator providing the level shifting necessary to allow data transfer in a multi-voltage system.

Externally applied voltages, VCC and VL, set the logic levels on either side of the device. It utilizes a transmission-gate-based design to allow data translation in either direction (VL <-> VCC) on any single data line. The ST2378E accepts VL from +1.71V to VCC and VCC from +1.71V to +5.5V, making them ideal for data transfer between low-voltage ASICs/PLDs and higher voltage systems. The ST2378E has a three-state output mode that reduces supply current to less than 1µA, thermal short-circuit protection, and ±15kV ESD protection on the VCC side for greater protection in applications that route signals externally.

The ST2378E operates at a guaranteed data rate of 13Mbps over the entire specified operating voltage range. Within specific voltage domains, higher data rates are possible.
