ST24E16

Features: *COMPATIBLE with I2C EXTENDED ADDRESSING*TWO WIRE SERIAL INTERFACE,SUPPORTS 400kHz PROTOCOL*1 MILLION ERASE/WRITE CYCLES, OVERthe FULL SUPPLY VOLTAGE RANGE*40 YEARS DATA RETENTION*SINGLE SUPPLY VOLTAGE --4.5V to 5.5V for ST24E16 versio --2.5V to 5.5V for ST25E16 versio*WRITE CONTROL FEAT...

product image

ST24E16 Picture
See larger image
SeekIC No. : 004506410 Detail

ST24E16: Features: *COMPATIBLE with I2C EXTENDED ADDRESSING*TWO WIRE SERIAL INTERFACE,SUPPORTS 400kHz PROTOCOL*1 MILLION ERASE/WRITE CYCLES, OVERthe FULL SUPPLY VOLTAGE RANGE*40 YEARS DATA RETENTION*SINGLE S...

ST24E16 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ST24E16
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

*COMPATIBLE with I2C EXTENDED ADDRESSING
*TWO WIRE SERIAL INTERFACE,SUPPORTS 400kHz PROTOCOL
*1 MILLION ERASE/WRITE CYCLES, OVER
  the FULL SUPPLY VOLTAGE RANGE
*40 YEARS DATA RETENTION
*SINGLE SUPPLY VOLTAGE
  --4.5V to 5.5V for ST24E16 versio
  --2.5V to 5.5V for ST25E16 versio
*WRITE CONTROL FEATURE
*BYTE and PAGE WRITE (up to 16 BYTES)
*BYTE, RANDOM and SEQUENTIAL READ MODES
*SELF TIMED PROGRAMING CYCLE
*AUTOMATIC ADDRESS INCREMENTING
*ENHANCED ESD/LATCH UP PERFORMANCES

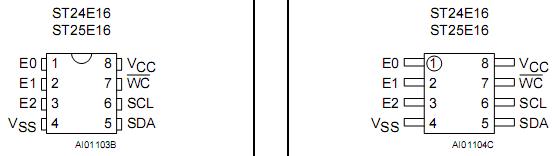

Pinout

Connection Diagram


Specifications

Symbol
Parameter
Value
Unit
TA
Ambient Operating Temperature
-40 to 125
TSTG
Storage Temperature
-65 to 150
TLEAD
Lead Temperature, Soldering (SO8)      40 sec
                                               (PSDIP8) 10 sec
215
260

VIO
Input or Output Voltages
-0.6 to 6.5
V
VCC
Supply Voltage
-0.3 to 6.5
V
VESD
Electrostatic Discharge Voltage (Human Body model)(2)
4000
V
Electrostatic Discharge Voltage (Machine model) (3)
500
V



Description

    The ST24/25E16 are 16 Kbit electrically erasable programmable memories (EEPROM), organized as 8 blocks of 256 x8 bits. It is manufactured in STMicroelectronics's Hi-Endurance Advance CMOS technology which guarantees an endurance of one million erase/write cycles over the full supply voltage range, and a data retention of over 40 years. The ST25E16 operates with a power supply value as low as 2.5V.
