ST3241E

Features: ` ESD PROTECTION FOR RS-232 I/O PINS: ±8KV IEC 1000-4-2 CONTACT DISCHARGE ±15KV HUMAN BODY MODEL` 1mA SUPPLY CURRENT ACHIEVED WHEN IN AUTO-POWERDOWN` 250Kbps MINIMUM GUARANTEED DATA RATE` GUARANTEED 6V/s SLEWRATE RANGE` GUARANTEED MOUSE DRIVEABILITY` 0.1mF EXTERNAL CAPACITORS` MEET EIA/T...

product image

ST3241E Picture
See larger image
SeekIC No. : 004506482 Detail

ST3241E: Features: ` ESD PROTECTION FOR RS-232 I/O PINS: ±8KV IEC 1000-4-2 CONTACT DISCHARGE ±15KV HUMAN BODY MODEL` 1mA SUPPLY CURRENT ACHIEVED WHEN IN AUTO-POWERDOWN` 250Kbps MINIMUM GUARANTEED DATA RATE` ...

ST3241E Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ST3241E
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

 `  ESD PROTECTION FOR RS-232 I/O PINS:
    ±8KV IEC 1000-4-2 CONTACT DISCHARGE
    ±15KV HUMAN BODY MODEL
 `  1mA SUPPLY CURRENT ACHIEVED WHEN IN AUTO-POWERDOWN
 `  250Kbps MINIMUM GUARANTEED DATA RATE
 `  GUARANTEED 6V/s SLEWRATE RANGE
 `  GUARANTEED MOUSE DRIVEABILITY
 `  0.1mF EXTERNAL CAPACITORS
 `  MEET EIA/TIA-232 SPECIFICATIONS DOWN TO 3V
 `  AVAILABLE IN SO-28, SSOP28 AND TSSOP28 PACKAGES

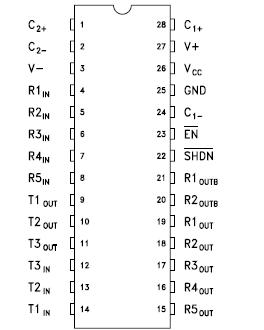

Pinout

Connection Diagram




Specifications

Symbol Parameter
Value
Unit
VCC Supply Voltage
-0.3 to 6
V
V+ Extra Positive Voltage (Note 1)
(VCC -0.3) to 7
V
V- Extra negative Voltage (Note 1)
0.3 to -7
V
V+ +|V-| (Note 1)
13
V
SHDN, EN, TIN Input Voltage
-0.3 to 6
V
RIN Receiver Input Voltage Range
± 25
V
TOUT Transmitter Output Voltage Range
± 13.2
V
ROUTROUTB
INVALID		 Receiver Output Voltage Range
-0.3 to (VCC + 0.3)
V
tSHORT Short Circuit Duration on TOUT (one at a time)
Continuous
V
Tstg Storage Temperature Range
-65 to 150

Absolute Maximum Ratings are those values beyond which damage to the device may occur. Functional operation under these condition is not implied.
Note 1: V+ and V- can have magnitude of 7V, but their absolute difference cannot exceed 13V


Description

The ST3241E device consists of 3 drivers, 5 receivers and a dual charge-pump circuit. The device meets the requirements of EIA/TIA and V.28/V.24 comunication standards providing high data rate capability and enhanced electrostatic discharge (ESD) protection. All transmitter outputs and receiver input are protected to ±8KV USING IEC 1000-4-2 contact discharge and ±15KV using the Human Body Model. The receiver R2 is always active to implement a wake-up feature for serial port.

The ST3241E has a proprietary low-dropout transmitter output stage enabling true RS-232 performance from a 3.0V to 5.5V supply with a dual charge pump. The device is guaranteed to run at data rates of 250kbps while maintaining RS-232 output levels.

ST3241E is a complete serial port (3 drivers, 5 receivers) intended for notebook or subnotebook computers. Receivers R1 and R2 have extra outputs in addition to their standard outputs. These extra outputa are always active.

ST3241E Typical application are in notebook, subnotebook, palmtop computers, battery-powered equipment, hand-held equipment, peripherals and printers.
