Position: Home  > All Categories> Integrated Circuits (ICs) > ST3S01LED

ST3S01LED

Switching Converters, Regulators & Controllers Battery Charge

product image

ST3S01LED Picture
See larger image
SeekIC No. : 00588392 Detail

ST3S01LED: Switching Converters, Regulators & Controllers Battery Charge

ST3S01LED Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ST3S01LED
Mfg:
STMicroelectronics
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description

Output Voltage :
Output Current :
Output Power :
Input Voltage :
Switching Frequency :
Operating Temperature Range :
Mounting Style :
Package / Case :
Packaging :


Features:

· DEDICATED I.C. FOR 1 LI-ION CELL OR 3 NI-MH CELLS
· 5 DIFFERENT OPERATING MODES
· 150 mA PRECHARGE CURRENT
· VERY LOW DROP CHARGE SWITCH (130mV @ 800mA)
· VERY LOW DROP REVERSE SWITCH (130mV @ 800mA)
· 5.7V OVER BATTERY OVER VOLTAGE PROTECTION
· CHARGER DETECTION MODE
· (VCHARGE-VBATT) DETECTION MODE

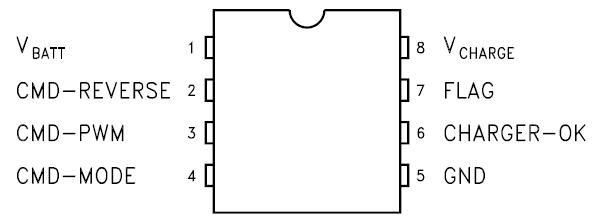

Pinout

Connection Diagram


Specifications

Symbol Parameter
Value
Unit
VBATT Battery Voltage
-0.3 to 6
V
VCHARGE Charge Voltage (*)
-12 to 16
V
VFLAG (VCHARGE - VBATT) Flag Control Voltage
-0.3 to 12
V
VCHARGER-OK Charger Flag Control Voltage
-0.3 to 12
V
VCMD-PWM PWM Command Voltage
-0.3 to 5
V
VCMD-MODE CMD Command Voltage
-0.3 to 5
V
VCMD-REVERSE Reverse Command Voltage
-0.3 to 5
V
ISWITCH Internal Switch
Continuous Max Current		 TAMB = 85, Rthj-amb = 40/W
2
A
TAMB = 30, Rthj-amb = 40/W
3
A
Internal Switch Peak
Current		 T<1ms Duty Cycle < 1%
Rthj-amb = 40/W
8
A
Tstg Storage Temperature Range
-55 to +125
TJ Operating Junction Temperature Range
-40 to +125
TAMB Operating Ambient Temperature Range (if an adeguate
heatsink is provided)
-40 to +85
Absolute Maximum Ratings are those values beyond which damage to the device may occur. Functional operation under these condition is not implied.
(*) The I.C. is automatically turned OFF when VCHARGE reaches typically 14V (VCHARGE rising edge); typical hysteresis is 700mV (VCHARGE falling edge)


Description

This specification describes a dedicated I.C. which allows to charge 1 Lilon cell or 3 Nimh cells. The principle used to charge the batteries is the pulsed current, the monitoring is operated by the micro-contoller of the application. This IC integrates one Power Switch and achieves the charge batteries in two different modes charge or precharge.

One of this operating mode (charge or precharge) can be selected in a static or pulsed way by one I/O from a micro-controller. The IC can supply power to accessories controlled by this I.C. in Reverse mode. The I.C. is available in the smaller and surface mounted SO-8 (exposed pad version) package.
