ST62T80B

PinoutSpecifications Symbol Parameter Value Unit VDD Supply Voltage -0.3 to 7.0 V VI Input Voltage VSS - 0.3 to VDD + 0.3(1) V VO Output Voltage VSS - 0.3 to VDD + 0.3(1) V IO Current Drain per PinExcluding VDD ,VSS ±10 mA IVDD TotalCurrent into VDD (source) 50...

product image

ST62T80B Picture
See larger image
SeekIC No. : 004506647 Detail

ST62T80B: PinoutSpecifications Symbol Parameter Value Unit VDD Supply Voltage -0.3 to 7.0 V VI Input Voltage VSS - 0.3 to VDD + 0.3(1) V VO Output Voltage VSS - 0.3 to VDD + 0.3(1) V...

ST62T80B Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ST62T80B
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Pinout

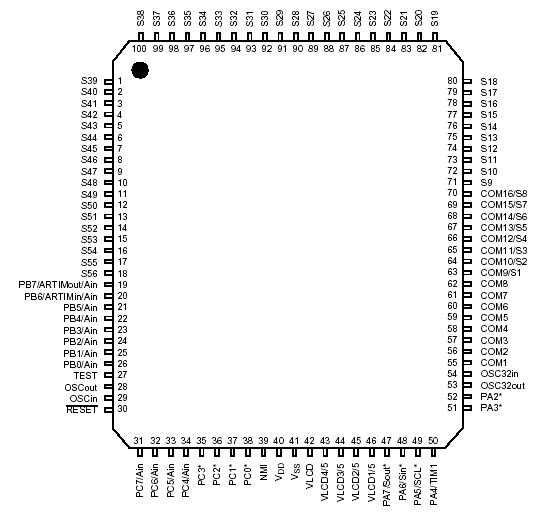

Connection Diagram


Specifications

Symbol Parameter Value Unit
VDD Supply Voltage -0.3 to 7.0 V
VI Input Voltage
VSS - 0.3 to VDD + 0.3(1)
 V
VO Output Voltage
VSS - 0.3 to VDD + 0.3(1)		 V
IO Current Drain per PinExcluding VDD  ,VSS
 ±10
 mA
IVDD TotalCurrent into VDD (source)
 50 mA
IVSS TotalCurrent out of VSS (sink)
 50 mA
Tj Junction Temperature 150 °C
TSTG Storage Temperature -60 to 150 °C



Description

The ST62T80B and ST62E80B devices are low cost members of the ST62xx 8-bit HCMOS family of microcontrollers, which is targeted at low to medium complexity applications. All ST62xx devices are based on a building block approach: a com-mon core is surrounded by a number of on-chip peripherals.
The ST62E80B is the erasable EPROM version of the ST62T80B device, which may be used to emulate the ST62T80B device, as well as the respective ST6280B ROM devices.
