ST6369

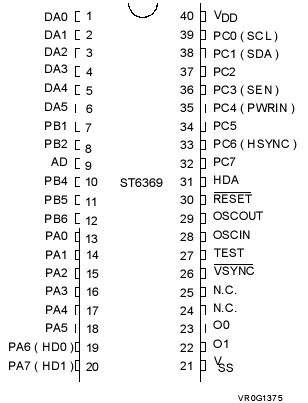

Pinout




Specifications

Symbol	Parameter Value	Unit
VDD	Supply Voltage -0.3 to 7.0	V
VI	Input Voltage(AD IN) V	SS -0.3 to +13	V
VI	Input Voltage(Other Inputs) V	SS - 0.3 toVDD +0.3	V
VO	Output Voltage (PA4-PA7, PC4-PC7, DA0-DA5)	VSS -0.3 to +13	V
VO	Output Voltage (Other Outputs) V	SS - 0.3 toVDD +0.3	V
IO	Current Drainper Pin ExcludingV ,V , PA6,PA7	± 10	mA
IO	Current Drainper Pin (PA6,PA7)	± 50	mA
IVDD	TotalCurrent intoVDD (source) 50	mA
IVSS	TotalCurrent outof VSS (sink) 150	mA
Tj	Junction Temperature 150	°C
TSTG	Storage Temperature -60 to 150	°C

Description

The ST6369microcontroller is member of the8-bit HCMOSST638xfamily,aseriesofdevicesspecially orientedtoDigitalControlledMultiFrequencyMonitor applications. ST6369membersare based on a building block approach: a common core is surrounded by a combination of on-chip peripherals (macrocells availablefromastandardlibrary.These peripheralsaredesignedwith thesame Core technologyproviding full compatibility and short design time. Many of these macrocells are speciallydedicated to DCMF Monitor applications. The macrocellsoftheST6369are:twoTimer peripheralseach includingan 8-bitcounterwitha 7-bit softwareprogrammableprescaler(Timer),adigitalhardwareac- tivatedwatchdogfunction(DHWD), a 14-bitvoltage synthesistuningperipheral,aSerialPeripheralInterface (SPI), six 6-bit PWM D/A converters, an A/D converter with 0.5V resolution, a 14-bit PWM D/A converter. In addition the following memory resources are available: program ROM (8K bytes), dataRAM(256bytes),EEPROM(384bytes).
