ST70137

Features: ` SUPPORT DIGITAL SIGNAL PROCESSING REQUIREMENTS FOR ONE ADSL CPE CHANEL (ITU-R)` COMPLIANT WITH ITU 992.1 (ADSL FULL RATE) ANNEXE A (ADSL OVER POTS) AND ANNEXE B (ADSL OVER ISDN) ANDITU 922.2 (G.LITE) AND ANSI T1.413.` DIRECT INTERFACE TO PCI BUS (PCI RELEASE 2.2 AND COMPLIANT WITH MIC...

product image

ST70137 Picture
See larger image
SeekIC No. : 004506689 Detail

ST70137: Features: ` SUPPORT DIGITAL SIGNAL PROCESSING REQUIREMENTS FOR ONE ADSL CPE CHANEL (ITU-R)` COMPLIANT WITH ITU 992.1 (ADSL FULL RATE) ANNEXE A (ADSL OVER POTS) AND ANNEXE B (ADSL OVER ISDN) ANDITU ...

ST70137 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ST70137
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`  SUPPORT DIGITAL SIGNAL PROCESSING
   REQUIREMENTS FOR ONE ADSL CPE CHANEL (ITU-R)
`  COMPLIANT WITH ITU 992.1 (ADSL FULL RATE) ANNEXE A (ADSL OVER POTS) AND ANNEXE B (ADSL OVER ISDN) AND
ITU 922.2 (G.LITE) AND ANSI T1.413.
`  DIRECT INTERFACE TO PCI BUS (PCI RELEASE 2.2 AND COMPLIANT WITH MICROSOFT PC99 & PC2001 SPECIFICATION)
`  DIRECT INTERFACE TO USB (USB RELEASE 1.1 SPECIFICATION)
`  DIRECT INTERFACE TO THE EXTERNAL SERIAL MEMORY TO SUPPORT PCI/USB USER'S CONFIGURATION
`  DIRECT ANALOG FRONT END INTERFACE FOR ST70136 OR ST70134
`  4 TO 8 GPIO DEPENDING ON SELECTED
   AFE AND EXTERNAL MEMORY CONFIGURATION SED
`  CLOCK & RESET INTERFACE
`  1.8V AND 3.3V POWER SUPPLY
`  TTL LOGIC LEVELS COMPATIBLE (DEPENDING ON PADS)
`  POWER MANAGEMENT
`  LOW POWER CONSUMPTION : 0.4W
`  TQFP 144
`  RFC 2364 PPP OVER ATM
`  UNI 3.0, 3.1, 4.0 SIGNALING
`  UBR, CBR
`  AAL0, AAL5
`  NDIS5.0 PCI DRIVER AND USB DRIVER


Pinout

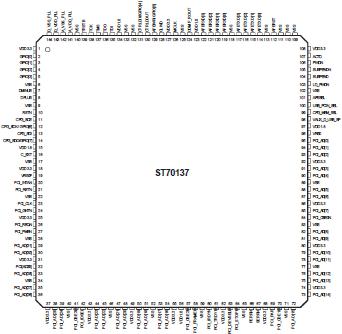

Connection Diagram


Specifications

Symbol Parameter Minimum Typical Maximum Unit
VDD3.3 Supply Voltage 3.0 3.3 3.6 V
VDD1.8 Supply Voltage 1.62 1.8 1.98 V
Ptot Total Power Dissipation     480 mW
Tamb Ambient Temperature 1.5ml airflow 0   70
Tstg Storage Temperature -65   +150
ESD ESD Protection (HBM) 2000     V



Description

ST70137 is STMicroelectronics UNICORNTM chipset ADSL DMT transceiver for controllerless ADSL CPE modem.

UNICORNTM allows to develop easily and quickly low cost ADSL CPE modem for PC environment.

UNICORNTM is made of two devices, ST70137 and ST70136 or ST70134 (CPE ADSL Analog Front End). ST70137 provides PCI and USB interface. PCI is used to build ADSL CPE modem bundled in the PC, USB interface is used to build external bus powered ADSL modem.

ST70137 is compliant with ITU 992.1 Annexe A and B, with ITU 992.2 and with ANSI T1.413. UNICORNTM chipset is delivered with a complete PC software suite for Microsoft Windows 98, Windows 2000 and Windows NT. NDIS5.0 PCI driver and USB driver with ADSL modem control and ATM device driver are provided assuring full ATM support. Configuration and diagnostic tools are also provided.

UNICORNTM chipset and PC software ensure interoperability with the most deployed DSLAM.
