ST72512R

Features:

Memories
   16K to 60K bytes Program memory (ROM,OTP and EPROM) with read-out protection
   256 bytes E² PROM Data memory (only on ST72532R4)
   1024 to 2048 bytes RAM
Clock,Resetand Supply Management
   Enhanced reset system
   Low voltage supply supervisor
   Clock sources:crystal/ceramic resonator oscillat or orexternal clock
   Beep and Clock-out capability
   4 Power Saving Modes:Halt, Active-Halt, Wait and Slow
Interrupt Management
   Nested interrupt controller
   13 interrupt vectors plusT RAP and RESET
   15 external interrupt lines (on4vectors)
   TLI dedicated top level interrupt pin
48 I/O Ports
   48 multifunctional bidirectional I/O lines
   32alternatefunctionlines
   12highsinkoutputs
5Timers
   Configurablewatchdogtimer
   Realtimeclocktimer
   One 8-bit auto-reload timer with 4i ndependent PWM output channels,2 input captures, output compares and external clock with  event detector
   (except on ST725x2R4)
   Two 16-bittimers with:2 input captures,2 output compares,external clock input on onetimer, PWM and Pulse generator modes
3 Communications Interfaces
   SPI synchronous serial interface
   SCI asynchronous serial interface
   CANinterface(exceptonST72311Rx)
1 Analog peripheral
   8-bit ADC with 8 input channels
Instruction Set
   8-bit data manipulation
   63 basic instructions
   17 main addressing modes
   8 x 8 unsigned multiplyi nstruction
   True bit manipulation
Development Tools
   Full hardware/software development package

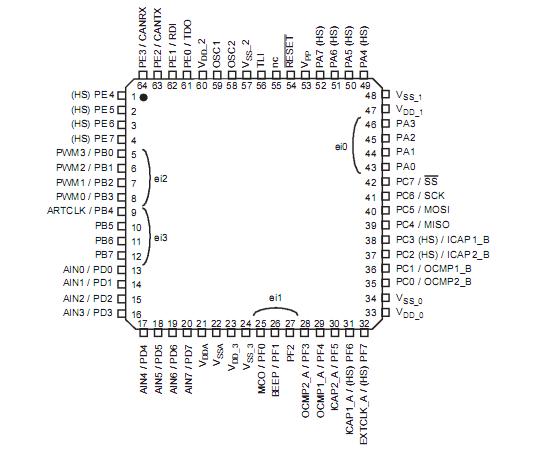

Pinout

Description

The ST72512R devices are members of the ST7 microcontroller family.They can be grouped as follows:
  ST72512Rdevices are designed for mid-range applications with a CAN bus interface (Controller Area Network)
  ST72512R devices target the same range of applications but without CAN interface.

All devices of the ST72512R are based on a common industrystandard 8-bit core,featuring an enhanced instruction set.

Under software control,all devices can be placed in WAIT,SLOW,ACTIVE-HALT or HALT mode,reducing power consumption when the application is in idle or standby state.

The enhanced in structionset and addressing modes of the ST7 offer both power and flexibility to software developers,enabling the design of highly efficient and compact application code.In addition to standard 8-bit data management,all ST7 microcontrollers feature true bit manipulation,8x8 unsigned multiplication and indirect addressing modes.
