Features:

HALFDUPLEXSYNCHRONOUSFSKMODEM
   - TWO PROGRAMMABLE CHANNELS FOR
   600BPSDATARATE
   - TWO PROGRAMMABLE CHANNELS FOR
   1200BPSDATARATE
AUTOMATICALLYTUNEDRxANDTxFILTERS
TX CARRIER FREQUENCIESSYNTHESIZED
   FROMEXTERNALCRYSTAL
LOWDISTORTIONTx SIGNAL(S/H2 50dB)
AUTOMATICLEVELCONTROLONTxSIGNAL
RxSENSITIVITY: 2mVRMS (600bps)
   3mVRMS (1200bps)
RxCLOCKRECOVERY
POWER-DOWN MODE
SUITABLETOAPPLICATIONINACCORDANCE
   WITH DH028/29 ENEL, EN50065-1 CENELEC
   ANDFCCSPECIFICATIONS


Pinout

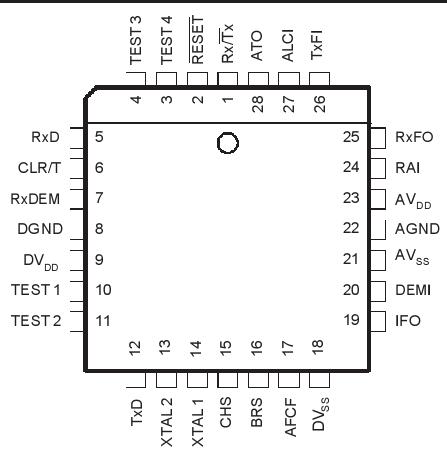

Connection Diagram


Specifications

Symbol Parameter Value Unit
AVDD/DVDD PositiveSupplyVoltage(1) -0.3,+7 V
AVSS/DVSS NegativeSupplyVoltage(1) -7,+0.3 V
VAGND/DGND Voltage between AGND and DGND -0.3,+0.3 V
VI Digital Input Voltage DGND DGND-0.3,DVDD+0.3 V
VO Digital Output Voltage DGND DGND-0.3,DVDD+0.3 V
LO DigitalOutputCurrent -5,+5 mA
VI Analog Input Voltage AVSS-0.3,AVDD+0.3 V
VO Analog Output Voltage
 AVSS-0.3,AVDD+0.3 V
IO Analog Output Current -5,+5m mA
PD PowerDissipation 500 mW
Toper OperatingTemperature -25,+70
Tstg StorageTemperature -65,+150



Description

The ST7536 is a half duplex synchronous FSKMODEM designed for power line communication networkapplications.
Itoperatesfroma dualpowersupply+5Vand -5V, andrequiresan externalinterfacefor thecoupling tothe powerline.It offerstwoprogrammabledata ratewith two programmablechannelseach.
