ST7537HS1

PinoutSpecifications Symbol Parameter Value Unit AVDD/DVDD Supply Voltage (1) - 0.3, + 12 V VI Digital Input Voltage DVSS - 0.3, DVDD + 0.3 V VO Digital Output Voltage (microcontroller interface) DVSS - 0.3, DVCC + 0.3 V VO Digital Output V...

product image

ST7537HS1 Picture
See larger image
SeekIC No. : 004506801 Detail

ST7537HS1: PinoutSpecifications Symbol Parameter Value Unit AVDD/DVDD Supply Voltage (1) - 0.3, + 12 V VI Digital Input Voltage DVSS - 0.3, DVDD + 0.3 V VO Digital...

ST7537HS1 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ST7537HS1
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Pinout

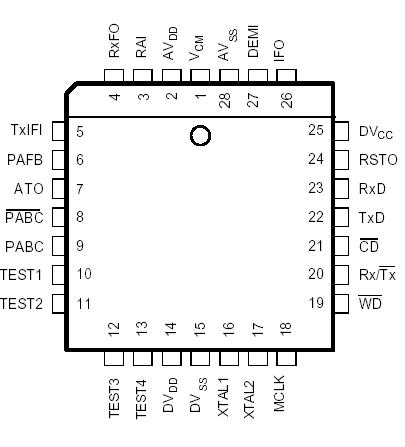

Connection Diagram


Specifications

Symbol
Parameter
Value
Unit
AVDD/DVDD
 Supply Voltage (1)
- 0.3, + 12
V
VI
 Digital Input Voltage
DVSS - 0.3, DVDD + 0.3
V
VO
 Digital Output Voltage (microcontroller interface)
DVSS - 0.3, DVCC + 0.3
V
VO
 Digital Output Voltage (PABC andPABC)
DVSS - 0.3, DVDD + 0.3
V
IO
 Digital Output Current
- 5, + 5
mA
VI
 Analog Input Voltage
AVSS - 0.3, AVDD + 0.3
V
VO
 Analog Output Voltage
AVSS - 0.3, AVDD + 0.3
V
IO
 Analog Output Current
- 5, + 5
mA
PD
 Power Dissipation
500
mW
Toper
 Operating Temperature
0, + 70
oC
Tstg
 Storage Temperature
- 55, + 150
oC



Description

The ST7537HS1 is a half duplex asynchronous FSK MODEM designed for home automation communication on the domestic electric mains which complies with the EN 50065-1 CENELEC standard.

ST7537HS1 mainly operates from a 10V power supply and a 5V power supply for the microcontroller digital interface.

ST7537HS1 is interfaced to the power line by an external driver, and a transformer (see Application Schematic Diagram). Its data transmission rate is 2400 bps and its carrier frequency is 132.45kHz.
