ST7554

Features: `SINGLE 9.216MHz CRYSTAL OSCILLATOR`INTEGRATED ANALOG AND DIGITAL 3.3V REGULATORS`DEDICATED PINS FOR RING, OFF-HOOK, CLID, LOOP CURRENT SENSE`0.5m CMOS PROCESS`TQFP48 (7 x 7 mm) PACKAGEApplication·USB HOT PLUG & PLAY INTERFACE·DIRECT INTERFACE TO ST MAFE+DAA CHIP-SET ST75951/ST952 FO...

product image

ST7554 Picture
See larger image
SeekIC No. : 004506805 Detail

ST7554: Features: `SINGLE 9.216MHz CRYSTAL OSCILLATOR`INTEGRATED ANALOG AND DIGITAL 3.3V REGULATORS`DEDICATED PINS FOR RING, OFF-HOOK, CLID, LOOP CURRENT SENSE`0.5m CMOS PROCESS`TQFP48 (7 x 7 mm) PACKAGEApp...

ST7554 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ST7554
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2026/1/16

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`SINGLE 9.216MHz CRYSTAL OSCILLATOR
`INTEGRATED ANALOG AND DIGITAL 3.3V REGULATORS
`DEDICATED PINS FOR RING, OFF-HOOK, CLID, LOOP CURRENT SENSE
`0.5m CMOS PROCESS
`TQFP48 (7 x 7 mm) PACKAGE



Application

·USB HOT PLUG & PLAY INTERFACE
·DIRECT INTERFACE TO ST MAFE+DAA CHIP-SET ST75951/ST952 FOR WORLD- WIDE DAA DESIGN OR TO STLC7550 FOR TRADITIONAL DAA DESIGN
·WINDOWS(C) 98 AND NT 5.0 SUPPORT
·TAPI 2.0 COMPLIANT
·SOFTWARE UPGRADABLE
·MINIMUM SYSTEM REQUIREMENTS:
·USB MOTHERBOARD, 166MHz PENTIUM(C) PROCESSOR WITH MMX(TM) TECHNOLOGY, WINDOWS(C) 98 AND 16MBYTES RAM OR WINDOWS(C) NT 5.0 AND 32MBYTES RAM




Pinout

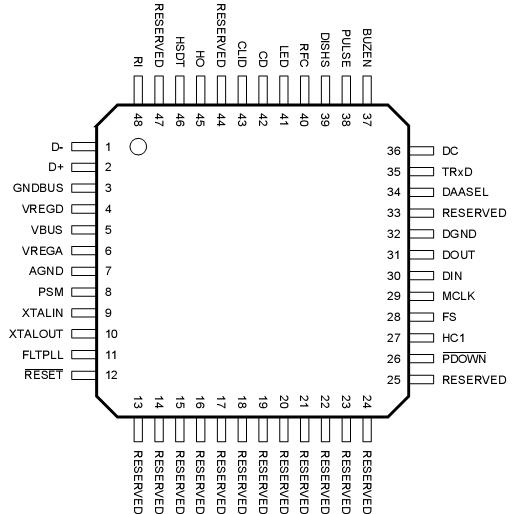

Connection Diagram


Description

The ST7554 is a single chip host signal processing Modem/fax/voice controller that supports data rates up to 56Kbps. All data pump and protocol functions are executed on the host PC's processor. This product has been developed in cooperation with Smart Link Ltd, who ported "USB-Modio", its host based Modem and system software into ST system
and hardware platform. The ST7554 directly con- nects to ST high performance Modem analog front- end (MAFE) STLC7550 or to the highly integrated MAFE+DAA chip-set ST75951/ST952. The ST7554 also features an Universal Serial Bus (USB) inter- face for direct connection to the host PC for maxi- mum flexibility and real plug & play operation.
