ST7FLCD1

Features: ` 60 KBytes Flash Program Memory` In-Circuit Debugging and Programming` In-Application Programming` Data RAM: up to 2 KBytes (256 bytes stack, 2 x 256 bytes for DDCs)` 8 MHz, up to 9 MHz Internal Clock Frequency` True Bit Manipulation` Run and Wait CPU Modes` Programmable Watchdog for Sy...

product image

ST7FLCD1 Picture
See larger image
SeekIC No. : 004506831 Detail

ST7FLCD1: Features: ` 60 KBytes Flash Program Memory` In-Circuit Debugging and Programming` In-Application Programming` Data RAM: up to 2 KBytes (256 bytes stack, 2 x 256 bytes for DDCs)` 8 MHz, up to 9 MHz I...

ST7FLCD1 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ST7FLCD1
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` 60 KBytes Flash Program Memory
` In-Circuit Debugging and Programming
` In-Application Programming
` Data RAM: up to 2 KBytes (256 bytes stack, 2 x 256 bytes for DDCs)
` 8 MHz, up to 9 MHz Internal Clock Frequency
` True Bit Manipulation
` Run and Wait CPU Modes
` Programmable Watchdog for System Reliability
` Protection against Illegal Opcode Execution
` 2 DDC Bus Interfaces with:
DDC 2B protocol implemented in hardware
Programmable DDC CI modes
Enhanced DDC (EDDC) address decoding
HDCP Encryption keys
` Fast I²C Single Master Interface
` 8-bit Timer with Programmable Pre-scaler, Auto-reload and independent Buzzer Output
` 8-bit Timer with External Trigger
` 4-channel, 8-bit Analog to Digital Converter
` 4 + 2 8-bit PWM Digital to Analog Outputs with Frequency Adjustment
` Infrared Controller (IFR)
` Up to 22 I/O Lines in 28-pin Package
` 2 Lines Programmable as Interrupt Inputs
` Master Reset and Low Voltage Detector (LVD) Reset
` Complete Development Support on PCWindows
` Full Software Package (Assembler, Linker, C-compiler and Source Level Debugger)


Pinout

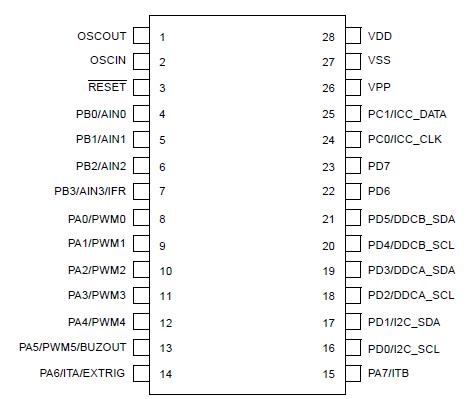

Connection Diagram


Specifications

Symbol
Ratings
Value
Unit
VDD
 Recommended Supply Voltage
-0.3 to +6.0
V
VIN
 Input Voltage
VSS -0.3 to VDD + 0.3
V
VAIN
 Analog Input Voltage (A/D Converter)
VSS -0.3 to VDD + 0.3
V
VOUT
 Output Voltage
VSS -0.3 to VDD + 0.3
V
IIN
 Input Current
-10 to +10
mA
IOUT
 Output Current
-10 to +10
mA
IINJ
 Accumulated injected current of all I/O pins (VDD, VSS)
40
mA
TA
 Operating Temperature Range
0 to +70
°C
TSTG
 Storage Temperature Range
-65 to +150
°C
TJ
 Junction Temperature
150
°C
PD
 Power Dissipation
TBD
mW
ESD
 ESD susceptibility
2000
V



Description

The ST7FLCD1 is a microcontroller (MCU) from the ST7 family with dedicated peripherals for LCD monitor applications. The ST7FLCD1 is an industry standard 8-bit core that offers an enhanced instruction set. The 5V supplied processor runs with an external clock at 24 MHz (27 MHz maximum). Under software control, the MCU mode changes to Wait mode thus reducing power consumption. The enhanced instruction set and addressing modes offer real programming potential.

In addition to standard 8-bit data management, the ST7FLCD1 features also include true bit manipulation, 8x8 unsigned multiplication and indirect addressing modes.

The ST7FLCD1 gathers the on-chip oscillator, CPU, 60-Kbyte Flash, 2-KByte RAM, I/Os, two 8-bit timers, infrared preprocessor, 4-channel Analog-to- Digital Converter, 2 DDCs, I²C single master, watchdog, reset and six 8-bit PWM outputs for analog DC control of external functions.
