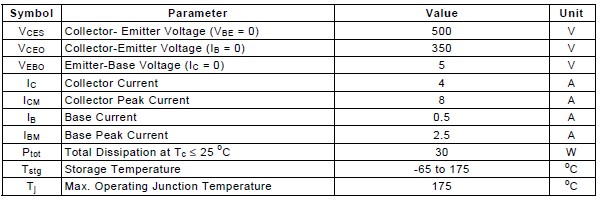

Collector- Base Voltage VCBO
:
Maximum Collector Cut-off Current
:
Power Dissipation
:
Transistor Polarity
: NPN
Mounting Style
: Through Hole
Packaging
: Tube
Configuration
: Single
Emitter- Base Voltage VEBO
: 5 V
Maximum DC Collector Current
: 4 A
Maximum Operating Temperature
: + 150 C
Package / Case
: TO-220AB
Collector- Emitter Voltage VCEO Max
: 350 V
Features: ·HIGH VOLTAGE SPECIAL DARLINGTON STRUCTURE
·VERY RUGGED BIPOLAR TECHNOLOGY
·HIGH OPERATING JUNCTION TEMPERATURE
·HIGH DC CURRENT GAINApplicationThe ST901T is a high voltage NPN silicon transistor in monolithic special Darlington configuration mounted in Jedec TO-220 plastic package, designed for applications such as electronic ignition for small engines (scooters, lawnmowers, chainsaws).
Specifications
Description·HIGH RUGGEDNESS ELECTRONIC IGNITION FOR SMALL ENGINES ST901T
Parameters: | Technical/Catalog Information | ST901T |
| Vendor | STMicroelectronics |
| Category | Discrete Semiconductor Products |
| Transistor Type | NPN |
| Voltage - Collector Emitter Breakdown (Max) | 400V |
| Current - Collector (Ic) (Max) | 8A |
| Power - Max | 80W |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 500 @ 4A, 2V |
| Vce Saturation (Max) @ Ib, Ic | 2V @ 1A, 5A |
| Frequency - Transition | - |
| Current - Collector Cutoff (Max) | - |
| Mounting Type | Through Hole |
| Package / Case | TO-220-3 (Straight Leads) |
| Packaging | Tube |
| Drawing Number | * |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | ST901T
ST901T
497 7461 5 ND
49774615ND
497-7461-5
|
