ST92163

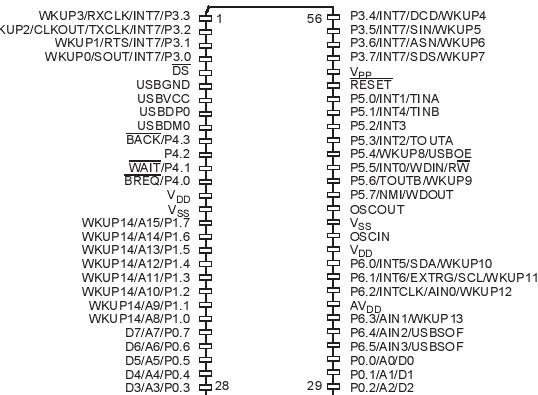

Pinout




Specifications

Symbol	Parameter	Value	Unit
VDD	Supply Voltage	0.3 to +7.0	V
VI	Input Voltage	0.3 to VDD +0.3	V
VAI	Analog Input Voltage (A/DConverter)	V - 0.3 to V +0.3 SS DD AV - 0.3 to AV +0.3 SS DD	V
VO	Output Voltage	0.3 to VDD +0.3	V
TSTG	Storage Temperature	55 to+ 150	C °
IINJ	Pin Injection Current Digital and Analog Input	-5 to +5	mA
	Maximum Accumulated Pininjection Current in the device	-50 to +50	mA
AVDD	A/D Converter Analog Reference	VDD -0.3 to VDD +0.3	V
AVSS	A/D Converter VSS	VSS -0.3 to VSS +0.3	V

Description

The ST92163 familybrings the enhancedST9 register-based architecture to a new range of highperformance microcontrollers specifically designed for USB (Universal Serial Bus) applications. Their performance derives from the use of a flexible 256-register programming model for ultrafast context switching and real-time event response. The intelligenton-chip peripherals offload the ST9 core from I/O and data management processing tasksallowing critical application tasks to get the maximum use of core resources. The ST92163 MCUdevicessupportlow powerconsumption and low voltage operation for power-efficient and low-cost embeddedsystems. IntheST92163family, fourdifferent types of deviceare available:

Normal Voltage Devices withLVD function They operate in Normal Voltage Mode only (4.0-5.5V @ 24MHz) and include the Low Voltage Detector (LVD) function.
