STA016T

Audio DSPs MPEG Audio Decoder

product image

STA016T Picture
See larger image
SeekIC No. : 00311890 Detail

STA016T: Audio DSPs MPEG Audio Decoder

STA016T Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
STA016T
Mfg:
STMicroelectronics
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Mounting Style : SMD/SMT Package / Case : TQFP-64
Packaging : Tray

Description

Operating Supply Voltage :
Supply Current :
Operating Temperature Range :
Mounting Style : SMD/SMT
Packaging : Tray
Package / Case : TQFP-64


Features:

 ·  SINGLE CHIP MPEG LAYER 3 DECODER SUPPORTING:
   - All features specified for Layer III in ISO/IEC 11172-3 (MPEG 1 Audio)
   - All features specified for Layer III in ISO/IEC 13818-3.2 (MPEG 2 Audio)
   - Lower sampling frequencies syntax extension,(not specified by ISO) called MPEG 2.5
 ·  DECODES LAYER III STEREO CHANNELS, DUAL CHANNEL, SINGLE CHANNEL (MONO)
 ·  SUPPORTING ALL THE MPEG 1 & 2 SAMPLING FREQUENCIES AND THE EXTENSION TO MPEG 2.5:48, 44.1,32,
24,22.05, 16, 12,11. 025, 8 KHz
 ·  ACCEPTS MPEG 2.5 LAYER III ELEMENTARY COMPRESSED BITSTREAM WITH DATA RATE FROM 8 Kbit/s UP TO 320  Kbit/s
 ·  BYPASS MODE FOR EXTERNAL AUXILIARY AUDIO SOURCE
 ·  ADPCM ENCODING/DECODING CAPABILITY:
   - sample frequency from 8 kHz to 32 kHz
   - sample size from 8 bits to 32 bits
   - encoding algorithm: DVI, ITU-G726 pack (G723-24, G721,G723-40)
 ·  EMBEDDED ISO9660 LAYER FOR FILESYSTEM DECODING (JOLIET)
 ·  EMBEDDED CD-ROM DECODER BLOCKS INCLUDING ECC/EDC CAPABILITY
 ·  FLEXIBLE I2S INPUT INTERFACE FOR EASY CONNECTION WITH MOST CD-SERVO DEVICES
 ·  EMBEDDED BROWSING COMMAND INTERPRETER FOR EASY FILE-SYSTEM BROWSING
 ·  CUE-SHEET CAPABILITY UP TO 100 ENTRIES
 ·  BROWSER COMMAND INTERPRETER (BCI)
   - Parent Dir
   - Enter Dir
   - Previous Entry
   - Next Entry
   - Get Record Infos
 ·  EASY PROGRAMMABLE GPSO INTERFACE (MONO/STEREO) FOR ENCODED DATA UP TO 5Mbit/s
 ·  DIGITAL VOLUME
 ·  BASS & TREBLE CONTROL
 ·  SERIAL BITSTREAM INPUT INTERFACE
 ·  EASY PROGRAMMABLE ADC INPUT INTERFACE
 ·  SERIAL PCM OUTPUT INTERFACE (I2S AND OTHER FORMATS)
 ·  PLL FOR INTERNAL CLOCK AND FOR OUTPUT PCM CLOCK GENERATION
 ·  CRC CHECK AND SYNCHRONISATION ERROR DETECTION WITH SOFTWARE INDICATORS
 ·  I2C CONTROL BUS
 ·  LOW POWER 2.4V CMOS TECHNOLOGY WITH 3.3V TOLERANT AND CAPABLE I/O
 ·  FAST FORWARD AND PAUSE CAPABILITIES


Application

 ·  AUDIO CD PLAYERS
 ·  MULTIMEDIA PLAYERS
 ·  CD-ROM PLAYERS
 ·  CAR RADIO PLAYERS


Pinout

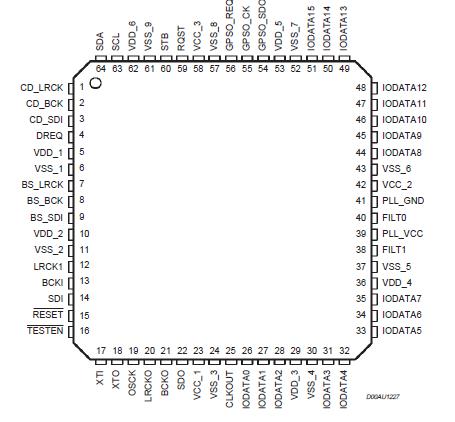

Connection Diagram


Specifications

Symbol Parameter
Value
Unit
VDD Power Supply
-0.3 to 3
V
Vi Voltage on input pins

-0.3 to VDD+0.3
V
VO Voltage on output pins
-0.3 to VDD+0.3
V
Tstg Storage Temperature

-40 to 150
Toper Operative ambient temp
-25 to 85



Description

The STA016T is a single chip MPEG 1, 2 and 2.5 Layer III audio decoder with embedded CDROM decoding capability. It can be easily connected to most existing CDDSP devices via a software configurable serial link. A tipical application block diagram is show in Figure 1. Besides MPEG decoding the device can also perform ADPCM encoding/decoding from different audio sources and the encoded stream, for instance, can be stored on an external flash memory.

A useful bypass mode of the STA016T allow using this device also as an audio processor for volume and tone controls.
