STA020

Features: · MONOLITHIC DIGITAL AUDIO INTERFACE TRANSMITTER· 3.3V SUPPLY VOLTAGE· SUPPORTS: - AES/EBU, IEC 958, - S/PDIF, & EIAJ CP-340 - Professional and Consumer Formats· PARITY BITS AND CRC CODES GENERATED· TRANSPARENT MODE ALLOWS DIRECT CONNECTION OF STA020 AND STA120PinoutSpecifications ...

product image

STA020 Picture
See larger image
SeekIC No. : 004506952 Detail

STA020: Features: · MONOLITHIC DIGITAL AUDIO INTERFACE TRANSMITTER· 3.3V SUPPLY VOLTAGE· SUPPORTS: - AES/EBU, IEC 958, - S/PDIF, & EIAJ CP-340 - Professional and Consumer Formats· PARITY BITS AND CRC CO...

STA020 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
STA020
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

 · MONOLITHIC DIGITAL AUDIO INTERFACE TRANSMITTER
 · 3.3V SUPPLY VOLTAGE
 · SUPPORTS:
   - AES/EBU, IEC 958,
   - S/PDIF, & EIAJ CP-340
   - Professional and Consumer Formats
 · PARITY BITS AND CRC CODES GENERATED
 · TRANSPARENT MODE ALLOWS DIRECT CONNECTION OF STA020 AND STA120

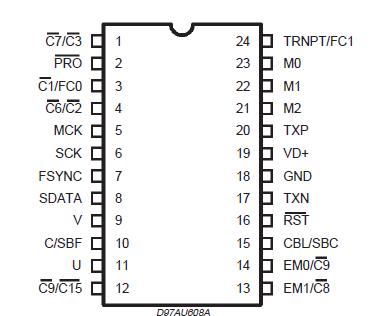

Pinout

Connection Diagram


Specifications

Symbol Parameter
Value
Value
VD+ DC Power Supply
4
V
VIND DC Power Supply
-0.3 to VD+ 0.3
V
Tamb Ambient Operating Temperature (power applied)
-20 to +85
Tstg Storage Temperature
-40 to 150



Description

The STA020 is a monolithic CMOS device which encodes and transmits audio data according to the AES/EBU, IEC 958, S/PDIF, & EIAJ CP-340 interface standards. It supports 96kHz sample rate operation.

The STA020 accepts audio and digital data which is then multiplexed, encoded and driven onto a cable.

The audio serial port is double buffered and capable of supporting a wide variety of formats.

The STA020 multiplexes the channel, user, and validity data directly from serial input pins with dedicated input pins for the most important channel status bits.
