Available Set Gain
:
Common Mode Rejection Ratio (Min)
:
THD plus Noise
:
Mounting Style
: SMD/SMT
Packaging
: Tube
Maximum Operating Temperature
: + 70 C
Supply Current
: 50 mA
Product
: Class-AB
Output Type
: 1-Channel Mono or 2-Channel Stereo
Maximum Power Dissipation
: 50000 mW
Output Power
: 80 W
Operating Supply Voltage
: 12 V, 15 V, 18 V
Package / Case
: PowerSO-38 Slug Up
Features: ` MINIMUM INPUT OUTPUT PULSE WIDTH DISTORTION
` 200m RdsON COMPLEMENTARY DMOS OUTPUT STAGE
` CMOS COMPATIBLE LOGIC INPUTS
` THERMAL PROTECTION
` THERMAL WARNING OUTPUT

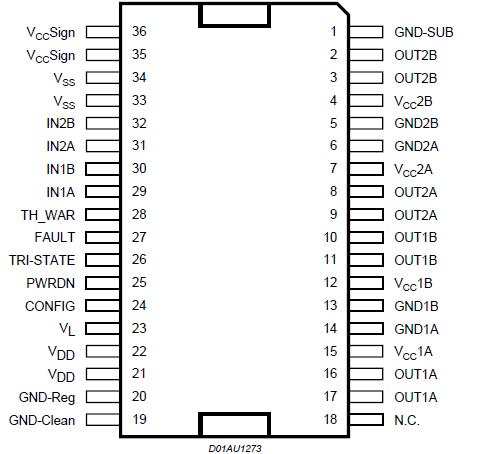

` UNDER VOLTAGE PROTECTION Pinout
Specifications
| Symbol |
Parameter |
Value |
Unit |
| VCE |
DC Supply Voltage (Pin 4,7,12,15) |
40 |
V |
| Vmax |
Maximum Voltage on pins (23 to 32) |
5.5 |
V |
| Ptot |
Power Dissipation (Tcase = 70) |
50 |
W |
| Top |
Operating Temperature Range |
0 to 70 |
|
| Tstg, Tj |
Storage and Junction Temperature |
-40 to 150 |
|
DescriptionSTA506 is a monolithic quad half bridge stage in Multipower BCD Technology.
The STA506 can be used as dual bridge or reconfigured, by connecting CONFIG pin to Vdd pin, as single bridge with double current capability, and as half bridge (Binary mode) with half current capability. The device is particularly designed to make the output stage of a stereo All-Digital High Efficiency (DDX™) amplifier capable to deliver 60 + 60W @ THD = 10% at Vcc 32V output power on 8 load and 80W @ THD = 10% at VCC 36V on 8 load in single BTL configuration. In single BTL configuration is also capable to deliver a peak of 120W @THD = 10% at VCC = 32V on 4 load (t 1sec). The iSTA506 nput pins have threshold proportional to VL pin voltage.
