STA508

Available Set Gain :
Common Mode Rejection Ratio (Min) :
THD plus Noise :
Output Power :
Mounting Style : SMD/SMT
Packaging : Tube
Supply Current : 50 mA
Product : Class-AB
Output Type : 1-Channel Mono or 2-Channel Stereo or 4-Channel Stereo
Maximum Power Dissipation : 50000 mW
Operating Supply Voltage : 30 V
Maximum Operating Temperature : + 90 C
Package / Case : PowerSO-36


Features:

`  MINIMUM INPUT OUTPUT PULSE WIDTH DISTORTION
`  200m R_dsON COMPLEMENTARY DMOS OUTPUT STAGE
`  CMOS COMPATIBLE LOGIC INPUTS
`  THERMAL PROTECTION
`  THERMAL WARNING OUTPUT
`  UNDER VOLTAGE PROTECTION

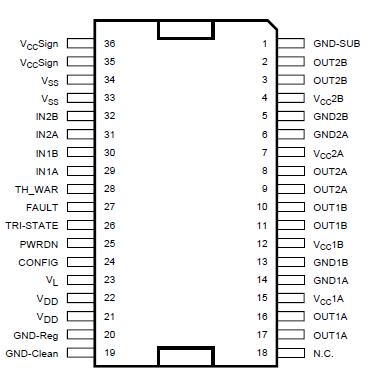

Pinout




Specifications

Symbol	Parameter	Value	Unit
VCE	DC Supply Voltage (Pin 4,7,12,15)	40	V
Vmax	Maximum Voltage on pins (23 to 32)	5.5	V
Ptot	Power Dissipation (Tcase = 70)	50	W
Top	Operating Temperature Range	0 to 70
Tstg, Tj	Storage and Junction Temperature	-40 to 150

Description

STA508 is a monolithic quad half bridge stage in Multipower BCD Technology. The device can be used as  dual bridge or reconfigured, by connecting CONFIG  pin to Vdd pin, as single bridge with double current capability, and as half bridge (Binary mode) with half current capability.

The STA508 is particularly designed to make the output stage of a stereo All-Digital High Efficiency (DDX™) amplifier capable to deliver 80 + 80W @ THD = 10% at Vcc 35V output power on 8 load.

In single BTL configuration is also capable to deliver a peak of 160W @THD = 10% at V_CC = 35V on 4  load (t 1sec). The STA508 input pins have threshold proportional to Ibias pin voltage.

Parameters:

Technical/Catalog Information	STA508
Vendor	STMicroelectronics
Category	Integrated Circuits (ICs)
Package / Case	PowerSO-36 Exposed Top Pad
Type	Class D
Output Type	1-Channel (Mono) or 2-Channel (Stereo)
Voltage - Supply	10 V ~ 36 V
Packaging	Tube
Features	Digital Inputs, Short-Circuit and Thermal Protection, Standby
Max Output Power x Channels @ Load	160W x 1 @ 8 Ohm; 80W x 2 @ 4 Ohm
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	STA508 STA508
