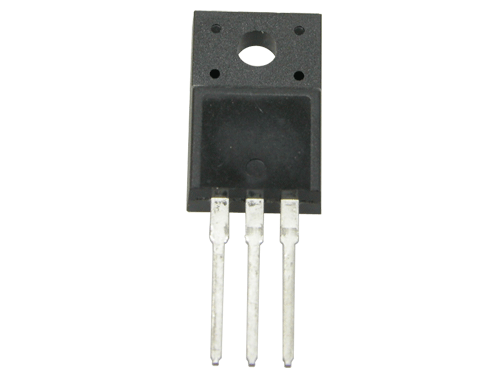

STD13005F

Features:

• High speed switching
• VCEO(sus)=400V
• Suitable for Switching Regulator and Motor Control




Pinout






Specifications

Characteristic	Symbol	Ratings	Unit
Collector-Base voltage	VCBO	700	V
Collector-Emitter voltage	VCEO	400	V
Emitter-Base voltage	VEBO	9	V
Collector current(DC)	IC	4	A
Collector current (Pulse)	ICM	8	A
Base current (DC)	IB	2	A
Base current (Pulse)	IBM	4	A
Total Power dissipation (Ta=25)	PD	30	W
Junction temperature	Tj	150
Storage temperature	Tstg	-55~150

Description

Bipolar transistors, also called junction type transistors, are a kind of transistors. Unlike field-effect transistors (unipolar transistors), they are called bipolar because they have two kinds of carriers (hole, electron) The devices are manufactured using high voltage Multi Epitaxial Planar technology for high switching speeds and medium voltage capability.
