Position: Home  > All Categories> Integrated Circuits (ICs) > STD882D

STD882D

Features: • Low collector saturation voltage VCE(sat) =0.4V(Max.)PinoutSpecifications Characteristic Symbol Ratings Unit Collector-Base voltage VCBO 40 V Collector-Emitter voltage VCEO 15 V Emitter-Base voltage VEBO 7 V Collector current(D...

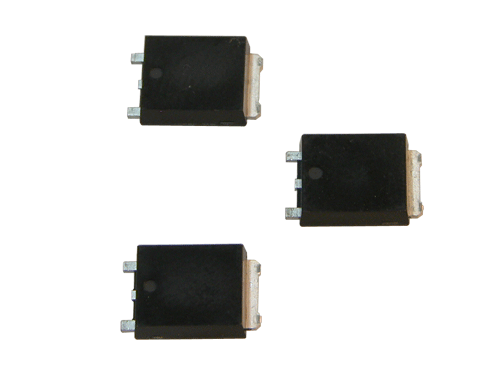

product image

STD882D Picture
See larger image
SeekIC No. : 004507540 Detail

STD882D: Features: • Low collector saturation voltage VCE(sat) =0.4V(Max.)PinoutSpecifications Characteristic Symbol Ratings Unit Collector-Base voltage VCBO 40 V Collector...

STD882D Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
STD882D
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Low collector saturation voltage VCE(sat) =0.4V(Max.)




Pinout






Specifications

Characteristic
Symbol
Ratings
Unit
Collector-Base voltage
VCBO
40
V
Collector-Emitter voltage
VCEO
15
V
Emitter-Base voltage
VEBO
7
V
Collector current(DC)
IC(DC)
5
A
Collector current(Pulse) *

IC(Pulse) *
8
A
Collector dissipation
PC
15
W
Junction temperature
Tj
150
Storage temperature range
Tstg
-55~150
* Pulse Test : Pulse Width=10ms (Max.), Duty Cycle=30%(Max.)




Description

STD882D features

• Suitable for low voltage large current drivers
• Excellent hFE Linearity
• Complementary pair with STB772D
• Switching Application

STD882D Bipolar transistors, also called junction type transistors, are a kind of transistors. Unlike field-effect transistors (unipolar transistors), they are called bipolar because they have two kinds of carriers (hole, electron)
