Data Bus Width
: 8 bit
Interface Type
: Parallel
Packaging
: Tube
Supply Voltage - Max
: 3.6 V
Maximum Operating Temperature
: + 85 C
Minimum Operating Temperature
: - 40 C
Memory Size
: 256 Kbit
Organization
: 32 K x 8
Supply Voltage - Min
: 2.7 V
Package / Case
: SOIC-32
Access Time
: 35 ns
Operating Current
: 60 mA
Features: • 25ns, 35ns and 45ns Access Times
• "Hands-off" Automatic STORE on Power Down with only a small capacitor
• STORE to QuantumTrap™ Nonvolatile Elements is Initiated by Software , device pin or AutoStore™ on Power Down
• RECALL to SRAM Initiated by Software or Power Restore
• Unlimited READ, WRITE and RECALL Cycles
• 5mA Typical ICC at 200ns Cycle Time
• 1,000,000 STORE Cycles to QuantumTrap™
• 100-Year Data Retention to QuantumTrap™
• Single 3V +20%, -10% Operation
• Commercial and Industrial Temperatures
• SSOP and SOIC Packages

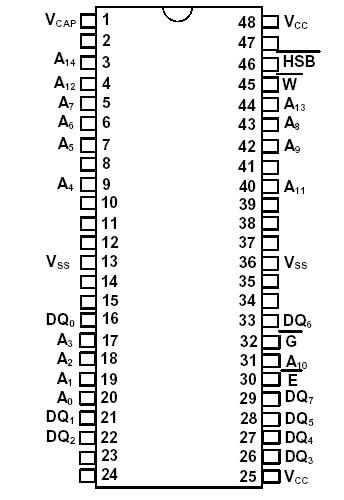

• RoHS CompliancePinout
Specifications
Power Supply Voltage
Voltage on Input Relative to VSS
Voltage on Outputs
Temperature under Bias
Junction Temperature
Storage Temperature
Power Dissipation
DC Output Current (1 output at a time, 1s duration) |
-0.5V to +4.1V
-0.5V to (VCC + 0.5V)
-0.5V to (VCC + 0.5V)
55°C to 125°C
55°C to 140°C
65°C to 150°C
1W
15mA |
Notes a: Stresses greater than those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. This is a stress rating only, and functional operation of the device at conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.
DescriptionThe Simtek STK14D88 is a fast static RAM with a nonvolatile element in each memory cell. The embedded nonvolatile elements incorporate Simtek's QuantumTrap™ technology producing the world's most reliable nonvolatile memory. The SRAM provides unlimited read and write cycles, while independent, nonvolatile data resides in the highly reliable QuantumTrapTM cell. Data transfers from the SRAM to the nonvolatile elements (the STORE operation) takes place automatically at power down. On power up, data is restored to the SRAM (the RECALL operation) from the nonvolatile memory. Both the STORE and RECALL operations are also available under software control.
Parameters: | Technical/Catalog Information | STK14D88-NF35I |
| Vendor | Cypress Semiconductor Corp |
| Category | Integrated Circuits (ICs) |
| Memory Type | NVSRAM (Non-Volatile SRAM) |
| Memory Size | 256K (32K x 8) |
| Speed | 35ns |
| Interface | Parallel |
| Package / Case | 32-SOIC |
| Packaging | Tube |
| Voltage - Supply | 2.7 V ~ 3.6 V |
| Operating Temperature | -40°C ~ 85°C |
| Format - Memory | RAM |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | STK14D88 NF35I
STK14D88NF35I
|
STK14D88-NF35I Data Sheet
