STLC2410B General Description


The STLC2410B offers a compact and complete solution for short-range wireless connectivity. It incorporates all the lower layer functions of the Bluetooth ® protocol.

The microcontroller allows the support of all data packets of Bluetooth® in addition to voice. The embedded controller can be used to run the Bluetooth ® protocol and application layers if required.The software is located in an external memory accessed through the external memory interface.

STLC2410B Maximum Ratings

Symbol Conditions Min Max Unit
VDD Supply voltage core VSS 0.5 2.5 V
VDDIO Supply voltage I/O   4 V
VIN input voltage on any digital pin VSS 0.5 VDDIO + 0.3 V
Tamb Operating ambient temperature -40 +85
Tstg Storage temperature -65 +150
Tlead Lead temperature < 10s   +250

STLC2410B Features

Bluetooth® V1.1 specification compliant
Point-to-point, point-to-multi-point (up to 7 slaves) and scatternet capability
Asynchronous Connection-Less (ACL) link support giving data rates up to 721kbps
Synchronous Connection-Oriented (SCO) link
Standard BlueRF bus interface
ARM7TDMI CPU
32-bit Core
Run from 13MHz external clock
Support of 32 kHz crystal for low power mode
Memory organization
64KByte on-chip RAM
4KByte on-chip boot ROM
Programmable external memory interface (EMI)
8-bit or 16-bit external data bus
Up to 3 programmable chip-select signals
Hold-acknowledge bus arbitration support
HW support for all packet types
ACL: DM1, 3, 5 and DH1, 3, 5
SCO: HV1, 2, 3 and DV1
Communication interfaces
Serial Synchronous Interface
Two enhanced 16550 UART's with 128 byte fifo depth
12Mbps USB interface
Fast master I2C bus interface
Multi slot PCM interface
16 programmable GPIO
2 external interrupts and various interrupt possibilities through other interfaces
Ciphering support for up to 128-bit key
Receiver Signal Strenght Indication (RSSI)support for power-controlled links
Separate control for external power amplifier (PA) for power class1 support.
Software support
Low level (up to HCI) stack or embedded stack with profiles
Support of UART and USB HCI transport layers
Idle and power down modes
Ultra low power in idle mode
Low standby current
Extended temperature range
Compliant to automotive specification AEC-Q100

STLC2410B Typical Application

Portable computers, PDA
Modems
Handheld data transfer devices
Cameras
Computer peripherals
Other type of devices that require the wireless communication provided by Bluetooth®
Cable replacement

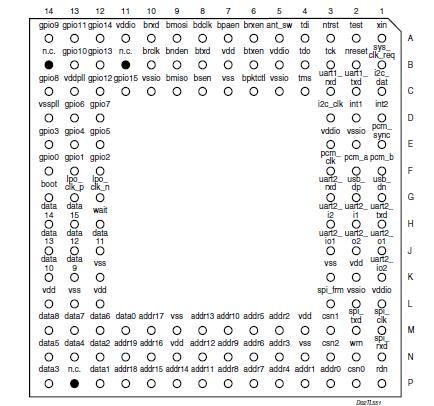

STLC2410B Connection Diagram
