STLC2411

Pin to pin compatible with the previous version STLC2410B
Ericsson Technology Licensing Baseband Core (EBC)
Bluetooth™ specification compliance: V1.1 and V1.2
Point-to-point, point-to-multi-point (up to 7 slaves)and scatternet capability
Asynchronous Connection Oriented (logical transport) link
Synchronous Connection Oriented (SCO) links: 2 simultaneous SCO channels
Supports Pitch-Period Error Concealment (PPEC)
Improves speech quality in the vicinity of interference
Improves coexistence with WLAN
Works at receiver, no Bluetooth implication
Adaptive Frequency Hopping (AFH): hopping kernel, channel assessment as Master and as Slave
Faster Connection: Interlaced scan for Page and Inquiry scan, first FHS without random backoff,RSSI used to limit range
Extended SCO (eSCO) links
Standard BlueRF bus interface
QoS Flush
Clock support
System clock input:any integer value from 12 . 33 MHz
LPO clock input at 3.2 and 32 kHz or via the embedded 32 kHz crystal oscillator cell
ARM7TDMI 32-bit CPU
Memory organization
64KByte on-chip RAM
4KByte on-chip boot ROM
Programmable external memory interface (EMI)
Supports byte and half word access
Supports up to 3 external RAM banks (1 Mbyte/ bank)
Supports up to 2 Mbyte external flash memory
Low power architecture with 2 different low power levels:
Sleep Mode
Deep Sleep Mode
HW support for packet types
ACL: DM1, 3, 5 and DH1, 3, 5
SCO: HV1, 3 and DV
eSCO: EV3, 5
Communication interfaces
Synchronous Serial Interface, supporting up to 32 bit data and different industry standards
Two enhanced 16550 UARTs with 128 byte FIFO depth
12Mbps USB interface
Fast master I2C bus interface
Multi slot PCM interface
16 programmable GPIOs
2 external interrupts and various interrupt possibilities through other interfaces
Ciphering support for up to 128-bit key
Efficient support for WLAN coexistence in collocated scenario
Receiver Signal Strength Indication (RSSI) support for power-controlled links
Separate control for external power amplifier (PA)for class1 power support.
Software support
Low level (up to HCI) stack or embedded stack with profiles
Support of UART and USB HCI transport layers
Compliant to automotive specification AEC-Q100

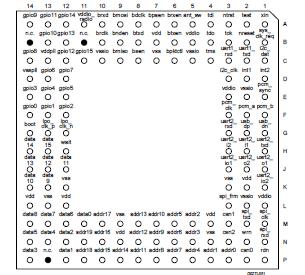

The STLC2411 offers a compact and complete solution for short-range wireless connectivity. It incorporates all the lower layer functions of the Bluetooth™ protocol. The microcontroller allows the support of all data packets of Bluetooth™ in addition to voice. The embedded controller can be used to run the Bluetooth ™ protocol and application layers if required. The software is located in an external memory accessed through the external memory interface.
