STLC5048

Conversion Rate :
Maximum Operating Temperature : + 85 C
Mounting Style : SMD/SMT
Resolution : 16 bit
Number of DAC Outputs : 4
Packaging : Tray
Interface Type : Serial
Number of ADC Inputs : 4
Operating Supply Voltage : 3.3 V
Package / Case : TQFP-64


Features:

 FULLY PROGRAMMABLE MONOLITHIC 4 CHANNEL CODEC/FILTER
SINGLE +3.3V SUPPLY
A/m LAW PROGRAMMABLE
LINEAR CODING (16 BITS) OPTION
PCM HIGHWAY FORMAT AUTOMATICALLY DETECTED:1.536 or 1.544 MHz2.048, 4.096,8192 MHz
TWO PCM PORTS AVAILABLE
TX GAIN PROGRAMMING: 33dB RANGE;<0.01dB STEP
RX GAIN PROGRAMMING:42dB RANGE;<0.01dB STEP
PROGRAMMABLE SLIC INPUT IMPEDANCE
PROGRAMMABLE TRANSHYBRID BALANCE FILTER
PROGRAMMABLE EQUALIZATION (FREQUENCY RESPONSE)
PROGRAMMABLE TIME SLOT ASSIGNMENT
DIGITAL AND ANALOG LOOPBACKS
SLIC CONTROL PORTSTATIC (16 I/Os)DYNAMIC (12 I/Os + 4 CS)
BUILT-IN TEST MODE WITH TONE GENERATION, MCU ACCESS TO PCM DATA
64 TQFP (10X10mm) PACKAGE
PROGRAMMABLE SLIC LINE CURRENT LIMITATION
PROGRAMMABLE SLIC OFF-HOOK DETECTION THRESHOLD

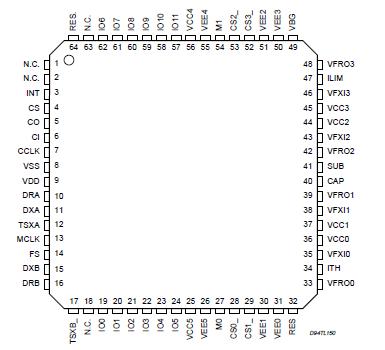

Pinout




Specifications

Symbol	Parameter	Value	Unit
VCC	VCC to VEE	4.6	V
VDD	VDD to VSS	4.6	V
VDIN	Digital Input Pin Voltage	5.5	V
VAin	Analog Input Pin Voltage(VDD=VCC; VEE=VSUB)	VCC + 0.5; VEE - 0.5	V
TSTG	Storage Temperature Range	-65 to +150
TLEAD	Lead Temperature (soldering, 10s)	300

Description

The STLC5048 is a monolithic fully programmable 4 channel CODEC and filter. It operates with a single +3.3V supply.

The analog interface STLC5048 is based on a receive output buffer driving the SLIC RX input and on an amplifier input stage normally driven by the SLIC TX output.Due to the single supply voltage a midsupply reference level is generated internally by the device and all analog signals are referred to this level (AGND).The PCM interface uses one common 8KHz frame sync. pulse for transmit and receive direction. The bit clock is automatically detected between four standards:1.563/1.544MHz, 2.048MHz, 4.096MHz,8192MHz.

Two PCM port are provided by STLC5048: the channels can be connected to port A or/and B.

Device STLC5048 programmability is achieved by means of several registers and commands allowing to set the different parameters like TX/RX gains, line impedance,transhybrid balance, equalization (frequency response), encoding law (A/m), time slot assignment,independent channels power up/down, loopbacks,PCM bits offset.

The STLC5048 can be programmed via serial interface running up to 8 MHz. One interrupt output pin is also provided.

A GUI interface STLC5048 is also available to emulate and program the coefficients for impedance synthesis, echo cancelling and channel filtering.

Parameters:

Technical/Catalog Information	STLC5048
Vendor	STMicroelectronics
Category	Integrated Circuits (ICs)
Type	PCM Codec/Filter
Number of ADCs / DACs	4 / 4
Dynamic Range, ADCs / DACs (db) Typ	-
S/N Ratio, ADCs / DACs (db) Typ	-
Resolution (Bits)	16 b
Voltage - Supply, Analog	3.3V ~ 5.0V
Voltage - Supply, Digital	3.3V ~ 5.0V
Mounting Type	Surface Mount
Package / Case	64-TQFP
Packaging	Tray
Operating Temperature	-40°C ~ 85°C
Sigma Delta	Yes
Interface	PCM
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	STLC5048 STLC5048
