Features:

ONE CHIP SOLUTION FROM PCM BUS TO TRANSFORMER (CEPT STANDARD)
ISDN PRIMARY ACCESS CONTROLLER (COMPATIBLE WITH ETSI, OPTION 1 AND 2)
HDB3/BIN ENCODER AND DECODER ON CHIP
MULTIFRAME STRUCTURE HANDLING
BUILT IN CRC4
EASY LINK TO ST5451/MK50H25/MK5027 LINK CONTROLLERS.
DATA RATE: 2048, 4096 AND 8192 Kb/s FOR MULTIPLEXEDAPPLICATIONS
FOUR LOOPBACKMODES FOR TESTING
PSEUDO RANDOM SEQUENCE GENERATOR AND ANALYZER FOR ON-LINE, OFFLINE AND AUTOTEST
CLOCK RECOVERY CIRCUITRY ON CHIP
64 BYTE ELASTIC MEMORY FOR TIME COMPENSATION AND AUTOMATIC FRAME AND SUPERFRAME ALIGNMENT
32 ON CHIP REGISTERS FOR CONFIGURATIONS,TESTING, ALARMS, FAULT AND ERROR RATE CONTROL.
AUTO ADAPTATIVE DETECTION THRESHOLD
AUTOMATIC EQUALIZER OPTION
5V POWER SUPPLY
AMI OR HDB3 CODE SELECTION
PARALLEL OR SERIAL MICROPROCESSOR INTERFACE OPTION
BOTH mp AND STAND ALONE MODE AVAILABLE


Pinout

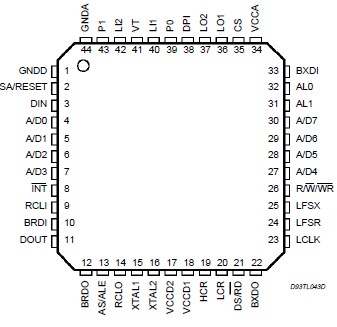

Connection Diagram


Specifications

Symbol Parameter Value Unit
VCC to GND Supply Voltage to Ground 7 V
VI Voltage at any digital or analog input VCC+1 to GND-1 V
ILO1, IOL2 Current at LO1 and LO2 ±100 mA
IC Current at any digital or analog input ±30 mA
Tstg Storage temperature range -65 to +150 °C
TL Lead Temperature (soldering, 10s) +300 °C



Description

STLC5432, CMOS device, interfaces the multiplex system to the physical CEPT Transmission link at 2048Kb/s. Furthermore, thanks to its flexibility,it is the optimum solution also for the ISDN application as PRIMARY RATE CONTROLLER.The receive circuit performances exceed CCITT recommendation and the line driver outputs meet the G.703 specifications.

STLC5432 is the real single chip solution that allows the best system flexibility and easy design.STLC5432 can work either in 2048 or 4096 or 8192 Kbit/s systems programming the CR4 register (when parallel micro interface selected).
