STLC60133

Rise Time :
Fall Time :
Supply Voltage - Max :
Supply Voltage - Min :
Product :
Maximum Power Dissipation :
Mounting Style : SMD/SMT
Packaging : Tube
Maximum Operating Temperature : 85 C
Supply Current : 12.5 mA
Type : Line Driver
Package / Case : HTSSOP-28


Features:

 LOW NOISE : 4nV/
HIGH PEAK OUTPUT CURRENT: 500 mA
HIGH SPEED
    140MHz Gain Bandwidth
    30MHz Gain Flatness
    400 V/us Slew Rate
LOW POWER OPERATION
    ±5V to ±15V Voltage Supply
    12.5 mA/Amp (typ) Supply current
    Power reduced Current
LOW SINGLE TONE DISTORTION
THERMAL AND OVERLOAD PROTECTION
HTSSOP28 PACKAGE
-40 TO +85°C OPERATING RANGE

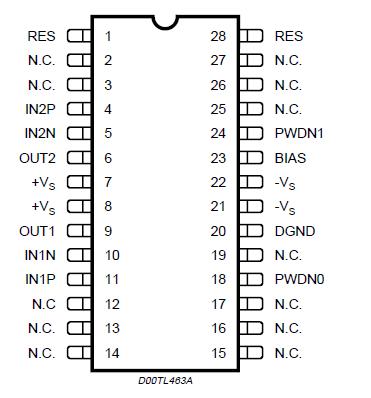

Pinout




Specifications

Symbol	Parameter	Value	Unit
VCC	Positive Supply voltage (note1)	+16.5	V
VSS	Negative Supply voltage (note1)	-16.5	V
Vid	Differential Input Voltage (note2)	±5	V
Vi	Common mode Input Voltage	±1	V
Top	Operating Free Air Temperature Range	-40 to +85
Tstg	Storage temperature	-65 to +150
Tj	Junction temperature	150

Description

The STLC60133 is a dual amplifier featuring a high slew rate and a large bandwidth optimized for XDSL applications. The device is available in a HTSSOP 28 pin package (4x9 mm) with an exposed leadframe.

Thanks to its small package this line driver is suitable for high density ADSL line card.

Two digital pins (PWDN0 and PWDN1) allow the STLC60133 to work in full performance mode, in low-power mode or two intermediate bias states.

The low-power mode biases the output stage in order to provide a low impedance at the amplifier outputs for back termination.

The STLC60133 is designed optimizing bandwidth and distortion performances. For proper device operating it is necessary to work with a gain level greater than 15.6dB.

Typical differential gain is normally +27dB, while typical common mode gain is 15.6dB
