STLVDS051

Features: MEETS OR EXCEED THE REQUIREMENTS OF ANSI EIA/TIA-644-1995 STANDARD SIGNALING RATES UP TO 400Mbit/s BUS TERMINAL ESD EXCEEDS 6KV OPERATES FROM A SINGLE 3.3V SUPPLY LOW-VOLTAGE DIFFERENTIAL SIGNALING WITH TYPICAL OUTPUT VOLTAGE OF 350mV AND A 100W LOAD PROPAGATION DELAY TIMES: DRIVER: 2ns...

product image

STLVDS051 Picture
See larger image
SeekIC No. : 004508115 Detail

STLVDS051: Features: MEETS OR EXCEED THE REQUIREMENTS OF ANSI EIA/TIA-644-1995 STANDARD SIGNALING RATES UP TO 400Mbit/s BUS TERMINAL ESD EXCEEDS 6KV OPERATES FROM A SINGLE 3.3V SUPPLY LOW-VOLTAGE DIFFERENTIAL...

STLVDS051 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
STLVDS051
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

 MEETS OR EXCEED THE REQUIREMENTS OF ANSI EIA/TIA-644-1995 STANDARD
SIGNALING RATES UP TO 400Mbit/s
BUS TERMINAL ESD EXCEEDS 6KV
OPERATES FROM A SINGLE 3.3V SUPPLY
LOW-VOLTAGE DIFFERENTIAL SIGNALING WITH TYPICAL OUTPUT VOLTAGE OF 350mV AND A 100W LOAD
PROPAGATION DELAY TIMES:
    DRIVER: 2ns (TYP)
    RECEIVER: 3ns (TYP)
POWER DISSIPATION AT 200MHz:
    DRIVER: 25mW (TYP)
    RECEIVER: 60mW (TYP)
LVTTL INPUT LEVELS ARE 5V TOLERANT
RECEIVER HAS OPEN-CIRUIT FAIL-SAFE


Pinout

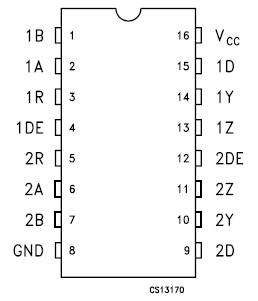

Connection Diagram


Specifications

Symbol Parameter Value Unit
VCC Supply Voltage -0.5 to 4 V
VI Voltage Range D, R, DE, RE -0.5 to 6 V
ESD ESD Protection Voltage (HBM) Y, Z, A, B, and GND ± 6
KV
All Pins ± 3
Tstg Storage Temperature Range -65 to +150
Absolute Maximum Ratings are those values beyond which damage to the device may occur. Functional operation under these condition is not implied.


Description

The STLVDS051 is differential line drivers andreceivers that use low-voltage differential signaling (LVDS) to achieve signaling rate as highas 400Mbps.

The EIA/TIA-644 standard compliant electrical interface STLVDS051 provides a minimum differential output voltage magnitude of 247 mV into a 100 W load and receipt of 100 mV signals with up to 1 V ofground potential difference between a transmitter and receiver.

The intended application of this device STLVDS051 ansignaling technique is for point-to-point baseband data transmission over controlled impedancemedia of approximately 100 W characteristic impedance.The transmission media may be printed-circuit board traces, backplanes, or cables. (Note: The ultimate rate and distance of data transfer is dependent upon the attenuation characteristics of the media, the noise coupling to the environment,and other application specific characteristics).
