STLVDS104

 RECEIVER AND DRIVERS MEET OR EXCEED THE REQUIREMENTS OF ANSI EIA/TIA-644 STANDARD, RECEIVERS DIFFERENTIAL INPUT LEVELS, ±100mV
DESIGNED FOR SIGNALING RATES UP TO 630Mbps
OPERATES FROM A SINGLE 3.3V SUPPLY
LOW VOLTAGE DIFFERENTIAL SIGNALING WITH TYPICAL OUTPUT VOLTAGE OF 350mV AND A 100W LOAD
PROPAGATION DELAY TIME: 3.1ns (TYP)
ELECTRICALLY COMPATIBLE WITH LVDS,PECL, LVPECL, LVTTL, LVCOMOS, GTL,BTL, CTT, SSTL, OR HSTL OUTPUTS WITH EXTERNAL NETWORK
BUS TERMINAL ESD (HBM) EXCEEDS 7KV
SO AND TSSOP PACKAGING

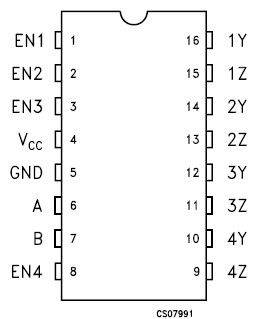

The STLVDS104 is a differential line receiver and a LVTTL input connected to four differential line drivers that implement the electrical characteristics of low voltage differential signaling,for point to point baseband data transmission over controlled impedance media of approximately 100W. The transmission media can be printed-circuit board traces, backplanes, or cable.LVDS, as specified in EIA/TIA-644 is a data signaling technique that offers low-power, low noise coupling, and switching speed to transmit data at a speed up to 630Mbps at relatively long distances.

The drivers STLVDS104 integrated into the same substrate,along with the low pulse skew of balanced signaling, allow extremely precise timing alignment of the signals repeated from the input.The device allows extremely precise timing alignment of the signal repeated from the input.This is particularly advantageous in distribution or expansion of signals such as clock or serial data stream.
