Driver Type : | VFD Drivers | Maximum Operating Temperature : | + 85 C |
Mounting Style : | SMD/SMT | Package / Case : | PQFP-44 |
Packaging : | Tray |
MANY DISPLAY MODES (11 SEGMENTS & 11 DIGITS TO 16 SEGMENTS & 4 DIGITS)
KEY SCANNING (6 x 4 MATRIX)
DIMMING CIRCUIT (EIGHT STEPS)
HIGH-VOLTAGE OUTPUT (VDD 35V MAX)
LED PORTS (4 CHS, 20mA MAX)
GENERAL PURPOSE INPUT PORT (4 bits)
NO EXTERNAL RESISTOR NECESSARY FOR DRIVER OUTPUT (P-CH OPEN DRAIN + PULL DOWN RESISTOR OUTPUT)
SERIAL INTERFACE (CLK, STB, DIN, DOUT)
Symbol | Parameter | Value | Unit |
VDD | Logic Supply Voltage | -0.5 to 7 | V |
VEE | Driver Supply Voltage | VDD+0.5 to VDD-40 | V |
VI | Logic Input Voltage | -0.5 to VDD+0.5 | V |
VO2 | VFD Driver Output Voltage | VEE-0.5 to VDD+0.5 | V |
IO1 | LED Driver Output Current | 25 | mA |
IO2 |
|
-40 (Grid) |
mA |
-15 (Segment) | |||
TA | Operating Ambient Temperature | -40 to 85 |

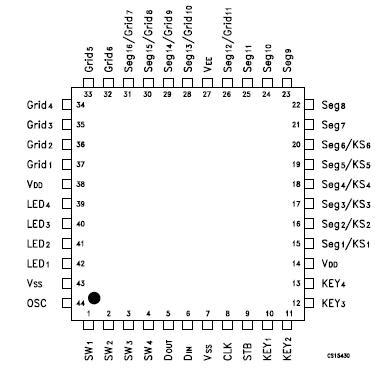

The STM86312 is a VFD (Vacuum Fluorescent Display) controller/driver that is driven on a 1/4 to 1/11-duty factor. It consists of 11-segments output lines, 6 grid output lines, 5 segments/grid output drive lines, a display memory, a control circuit, and a key scan circuit. Serial data are input to the STM86312 through a three-line serial interface.This VFD controller/driver is ideal as a peripheral device for a single-chip microcomputer.
Technical/Catalog Information | STM86312 |
Vendor | STMicroelectronics |
Category | Integrated Circuits (ICs) |
Package / Case | 44-PQFP |
Digits or Characters | 4 Digits |
Configuration | 16 Segments |
Display Type | Vacuum Fluorescent (VF) |
Interface | Serial |
Packaging | Tray |
Current - Supply | - |
Voltage - Supply | 4.5 V ~ 5.5 V |
Operating Temperature | -40°C ~ 85°C |
Lead Free Status | Contains Lead |
RoHS Status | RoHS Non-Compliant |
Other Names | STM86312 STM86312 497 4363 ND 4974363ND 497-4363 |
