STPAC02F1

Operating Frequency :
Supply Voltage - Max :
Supply Voltage - Min :
Supply Current :
Maximum Power Dissipation :
Operating Temperature Range :
Packaging : Reel

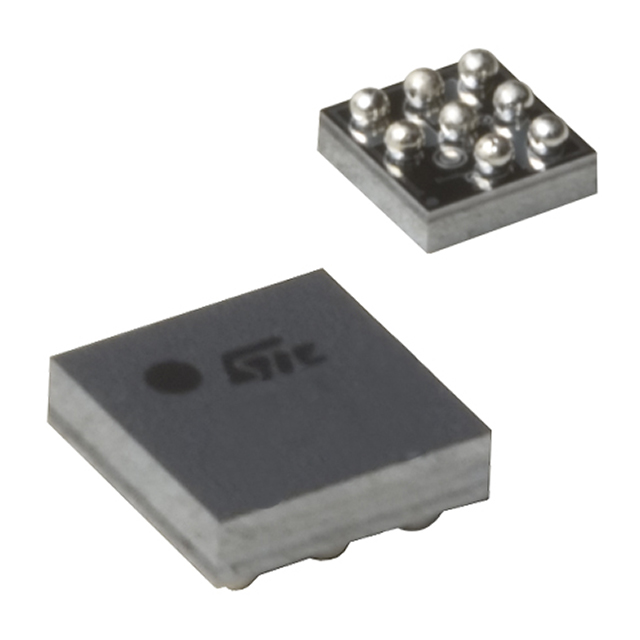

Package / Case : Flip-Chip-8


Pinout




Specifications

Symbol	Parameter and test conditions	Value	Unit
VBIAS	Bias voltage	5	V
PRF	RF power at the RF input	20	dBm
FOP	Operating frequency range	0.8 to 2.5	GHz
VPP	ESD level as per MIL-STD 883E method 3015.7 notice 8 (HBM)	250	V
TOP	Operating temperature range	-30 to +85	°C
TSTG	Storage temperature range	-55 to 150	°C

Description

The STPAC02F1 is an integrated RF detector for power control chain. It has been developed to convert the RF signal coming from the external coupler into a DC signal usable by the mobile digital stage. It is based on the use of two similar diodes, one assuming the signal detection while the second one is used to compensate the ambient temperature effect. A biasing stage suppresse he detection diode drop voltage effect. The use of the IPAD technology allows the RF front-end designer to save PCB area and to drastically suppress the parasitic inductances of the package.Target applications are cellular phones and PDA using GSM, DCS, PCS, AMPS, TDMA , CDMA and 800MHz to 2100MHz frequency ranges.


Parameters:

Technical/Catalog Information	STPAC02F1
Vendor	STMicroelectronics (VA)
Category	RF and RFID
RF Type	AMPS, CDMA, DCS, GSM, TDMA
Package / Case	8-FlipChip
Frequency	800MHz ~ 2.5GHz
Packaging	Cut Tape (CT)
Drawing Number	*
Input Range	-
Accuracy	-
Voltage - Supply	2.3 V ~ 3.3 V
Current - Supply	1.6mA
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	STPAC02F1 STPAC02F1 497 4389 1 ND 49743891ND 497-4389-1
