STPS2H100

Recovery Time :
Maximum Power Dissipation :
Mounting Style : Through Hole
Configuration : Single
Product : Schottky Rectifiers
Peak Reverse Voltage : 100 V
Maximum Reverse Leakage Current : 1 uA
Operating Temperature Range : + 175 C
Forward Continuous Current : 2 A
Package / Case : DO-41
Max Surge Current : 50 A
Packaging : Ammo
Forward Voltage Drop : 0.92 V at 4 A


Features:

·NEGLIGIBLE SWITCHING LOSSES
·HIGH JUNCTION TEMPERATURE CAPABILITY
·GOOD TRADE OFF BETWEEN LEAKAGE CURRENTAND FORWARD VOLTAGE DROP
·LOW LEAKAGE CURRENT
·AVALANCHE CAPABILITY SPECIFIED

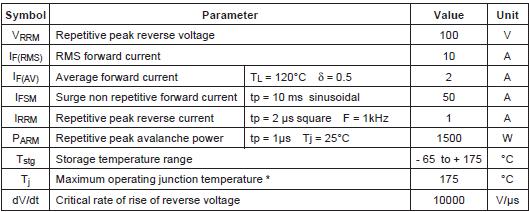

Specifications

* :dPtotdTj Rth j a<-1( )thermal runaway condition for a diode on its own heatsink

Description

Axial Power Schottky rectifier STPS2H100 suited for SwitchMode Power Supply and high frequencyDC/DC converters. Packaged in DO-41, this STPS2H100  is intended for use in low voltage, highfrequency inverters and small batterychargers.
