Part Number: STQ-3016



MFG: SIRENZA

Package Cooled: TSSOP16

D/C: 2001

Description: The Stanford Microdevices' STQ-3016 is a direct quadrature modulator targeted for use in a wide range ...


Urgent Purchase

STQ-3016 General Description


The Stanford Microdevices' STQ-3016 is a direct quadrature modulator targeted for use in a wide range of communications systems. This device features a wide 2500-4000 MHz operating frequency band, excellent carrier and sideband suppression, and a low broadband noise floor.

The STQ-3016 uses silicon germanium device technology and delivers a typical output power of -13dBm with 50dB IM3 suppression. A shutdown feature is included that,
when enabled, attenuates the output by 60dB.

STQ-3016 Maximum Ratings

Parameters
Value
Unit
Supply Voltage
6.0
VDC
LO, RF Input
+10
dBm
Min Input Voltage (BBIP, BBIN, BBQP, BBQN)
0
VDC
Max Input Voltage (BBIP, BBIN, BBQP, BBQN)
3
VDC
Operating Temperature
-40 to +85
Storage Temperature
-65 to +150

STQ-3016 Features

• 2500-4000 MHz operating frequency
• No external IF filter
• Very low noise floor performance
• Excellent carrier and sideband suppression
• Low LO drive requirements
• Shut-down feature
• Single 5 volt supply
• Supports wideband baseband input

STQ-3016 Typical Application

• Digital communication system
• Spread spectrum communication systems
• GMSK, QPSK, QAM, SSB moduators
• Fixed wireless communication systems

STQ-3016 datasheet

STQ-3016
PDF/DataSheet Download

Find STQ-3016 Suppliers

  • ·STQ-1016
  • ETC [ETC]
  • 250 - 1000 MHz Direct Quadrature Modulator
  • 150146 KB
  • STQ-1016 Datasheet Download
  • ·STQ1553-1
  • Pulse A Technitrol Company
  • MILITARY/AEROSPACE PRODUCTS
  • 393718 KB
  • STQ1553-1 Datasheet Download
  • ·STQ1553-2
  • Pulse A Technitrol Company
  • MILITARY/AEROSPACE PRODUCTS
  • 393718 KB
  • STQ1553-2 Datasheet Download
  • ·STQ1553-3
  • Pulse A Technitrol Company
  • MILITARY/AEROSPACE PRODUCTS
  • 393718 KB
  • STQ1553-3 Datasheet Download
  • ·STQ1553-45
  • Pulse A Technitrol Company
  • MILITARY/AEROSPACE PRODUCTS
  • 393718 KB
  • STQ1553-45 Datasheet Download
  • ·STQ1553-5
  • Pulse A Technitrol Company
  • MILITARY/AEROSPACE PRODUCTS
  • 393718 KB
  • STQ1553-5 Datasheet Download
  • ·STQ1HNC60
  • STMICROELECTRONICS [STMicroelectronics]
  • N-CHANNEL 600V - 7ohm - 0.4A TO-92 PowerMesh⑩II MOSFET
  • 119178 KB
  • STQ1HNC60 Datasheet Download
  • ·STQ1HNK60R
  • STMICROELECTRONICS [STMicroelectronics]
  • N-CHANNEL 600V - 8 - 1A DPAK / IPAK / TO-92 SuperMESH Power MOSFET
  • 766032 KB
  • STQ1HNK60R Datasheet Download

Related Part Number

STQ-3016 Relative Products

  • STQ2NK60ZR-AP

    STQ2NK60ZR-AP

    The SuperMESH™ series STQ2NK60ZR-AP is obtained through an extreme optimization of ST's well established strip-based PowerMESH™ layout. In addition to pushing on-resistance significantly down, special care is taken to ensure a very good dv/dt cap...

  • STQ2NF06L

    STQ2NF06L

    This Power MOSFET STQ2NF06Lis the latest development of STMicroelectronis unique "Single Feature Size™" strip-based process. The resulting transistor shows extremely high packing density for low onresistance, rugged avalanche characteristics and less c...

  • STQ2HNK60ZR-AP

    STQ2HNK60ZR-AP

    The SuperMESH™ series STQ2HNK60ZR-APis obtained through an extreme optimization of ST's well established stripbased PowerMESH™ layout. In addition to pushing on-resistance significantly down, special care is taken to ensure a very good dv/dt capa...

  • STQ-2016Z

    STQ-2016Z

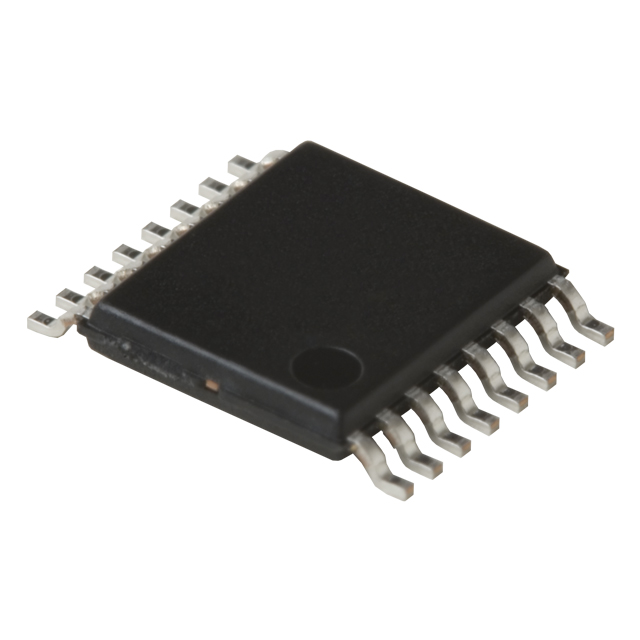

    IC QUADRATURE MOD DIRECT 16TSSOP
