STR-A6100Series
-
Suppliers
DataSheet
General Description
STR-A6100Series Features
PRC Pulse Ratio Control : (8µs fixed off-time, variable on-time)
The switching frequency varies within an optimum range of 63kHz to 120kHz, according to load
variations, to create a quasi-jittering, low-EMI noise operation.
Auto burst standby: (No Load Consumption <100 mW at AC264V)
Enables very low power consumption at no load.
Typical results of a 5W universal input power supply are 35mW at AC110V and 43mW at AC220V.
Auto bias function
This function stabilizes operation during Auto Burst Standby mode, by preventing a Hiccup mode.
The Auto Bias function forces the IC to turn on before the VCC voltage reaches VCC(OFF), thereby
stabilizing the entire power supply operation.
Integrated startup circuit
600V BCD process allows direct connection of the STARTUP pin to the rectified high voltage
rail. This reduces component count and improves overall efficiency.
Current mode control
Leading edge blanking
Not required the external Low-pass filter circuit which prevent the malfunction due to the leading
edge spike current.
Avalanche energy guaranteed MOSFET with high VDSS
The built-in power MOSFET simplifies the surge absorption circuit since the MOSFET guarantees
the avalanche energy.
No VDSS de-rating is required.
Various protecting functions
• Over current protection ------------ pulse by pulse
• Over voltage protection ------------ with latch
• Overload protection ---------------- Auto restart
• Thermal shutdown ------------------ with latch
The switching frequency varies within an optimum range of 63kHz to 120kHz, according to load
variations, to create a quasi-jittering, low-EMI noise operation.
Auto burst standby: (No Load Consumption <100 mW at AC264V)
Enables very low power consumption at no load.
Typical results of a 5W universal input power supply are 35mW at AC110V and 43mW at AC220V.
Auto bias function
This function stabilizes operation during Auto Burst Standby mode, by preventing a Hiccup mode.
The Auto Bias function forces the IC to turn on before the VCC voltage reaches VCC(OFF), thereby
stabilizing the entire power supply operation.
Integrated startup circuit
600V BCD process allows direct connection of the STARTUP pin to the rectified high voltage
rail. This reduces component count and improves overall efficiency.
Current mode control
Leading edge blanking
Not required the external Low-pass filter circuit which prevent the malfunction due to the leading
edge spike current.
Avalanche energy guaranteed MOSFET with high VDSS
The built-in power MOSFET simplifies the surge absorption circuit since the MOSFET guarantees
the avalanche energy.
No VDSS de-rating is required.
Various protecting functions
• Over current protection ------------ pulse by pulse
• Over voltage protection ------------ with latch
• Overload protection ---------------- Auto restart
• Thermal shutdown ------------------ with latch
STR-A6100Series Typical Application
Battery Charger ---------------------- Cell Phone, Digital Still Camera, Camcorder, Shaver, Emergency light, Guidance light, and etc.
Standby Power Supply --------------- Various TV applications, PC, LBP, Audio system and etc.
S.M.P.S. -------------------------------- Ink jet printer, DVD Player/ Recorder, VCR, Set Top Box and etc.
Controller Power Supply ------------ Air conditioner, Refrigerator, Washer, Dish Washer and etc.
Standby Power Supply --------------- Various TV applications, PC, LBP, Audio system and etc.
S.M.P.S. -------------------------------- Ink jet printer, DVD Player/ Recorder, VCR, Set Top Box and etc.
Controller Power Supply ------------ Air conditioner, Refrigerator, Washer, Dish Washer and etc.
STR-A6100Series Connection Diagram
STR001BG6SPGF
PDF/DataSheet Download
- Datasheet: STR001BG6SPGF
- File Size: 230886 KB
- Manufacturer:
- Click here to Download
- ·STR0R4BG6SPGF
- PRES TRANSDUCER 0.4 BAR
- 230886 KB
- ·STR10006
- ETC [ETC]
- STR10006
- 118366 KB
- ·STR-1005T
- Sanken electric
- SANKEN HYBRID VOLTAGE REGULATOR MODULE
- 185281 KB
- ·STR20005
- Analog IC
- 425139 KB
- ·STR2000SERIES
- DC-to-DC Voltage Converter
- 85393 KB
- ·STR2012
- SANKEN [ Sanken electric ]
- Switching Type(Chopper * Self Oscillation Type)
- 41930 KB
- ·STR212
- ETC
- 207386 KB
- ·STR25BG6SPGF
- PRES TRANSDUCER 0.25 BAR
- 230886 KB
STR-A6100Series Relative Products
STR9-RVDK/BAS
KIT DEV ARM REALVIEW STR7/9 MCU
STR9-DK/RAIS
KIT DEV RAISONANCE STR7/9
STR9-COMSTICK
KIT EVAL/DEV STR91XF LOW COST

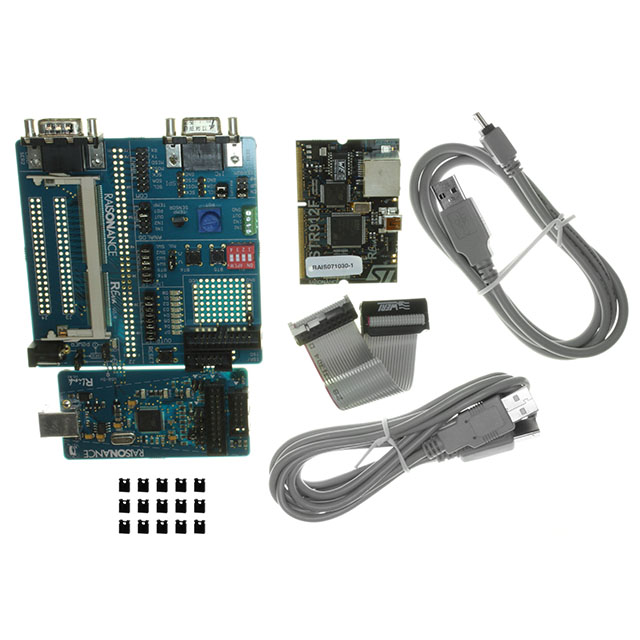

STR91X-SK/RAI
KIT STARTER FOR STR910 FAMILY

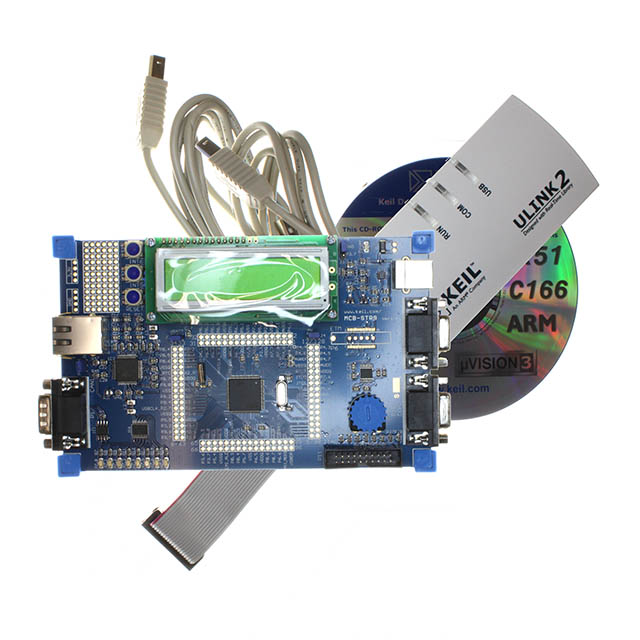

STR91X-SK/KEI
