STR711FR2T6

ARM Microcontrollers (MCU) 256K Flash 64K RAM

product image

STR711FR2T6 Picture
See larger image
SeekIC No. : 00377968 Detail

STR711FR2T6: ARM Microcontrollers (MCU) 256K Flash 64K RAM

STR711FR2T6 Data Sheet

floor Price/Ceiling Price

US $ 4.54~6.07 / Piece | Get Latest Price
Part Number:
STR711FR2T6
Mfg:
STMicroelectronics
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~10
  • 10~100
  • 100~250
  • Unit Price
  • $6.07
  • $5.79
  • $5.5
  • $4.54
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/19

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Core : ARM7TDMI Processor Series : STR711x
Data Bus Width : 32 bit Maximum Clock Frequency : 16 MHz
Program Memory Size : 256 KB Data RAM Size : 64 KB
On-Chip ADC : Yes Operating Supply Voltage : 3 V to 3.6 V
Operating Temperature Range : - 40 C to + 85 C Package / Case : TQFP-64
Mounting Style : SMD/SMT

Description

Data Bus Width : 32 bit
On-Chip ADC : Yes
Mounting Style : SMD/SMT
Operating Temperature Range : - 40 C to + 85 C
Program Memory Size : 256 KB
Data RAM Size : 64 KB
Operating Supply Voltage : 3 V to 3.6 V
Package / Case : TQFP-64
Core : ARM7TDMI
Maximum Clock Frequency : 16 MHz
Processor Series : STR711x


Pinout

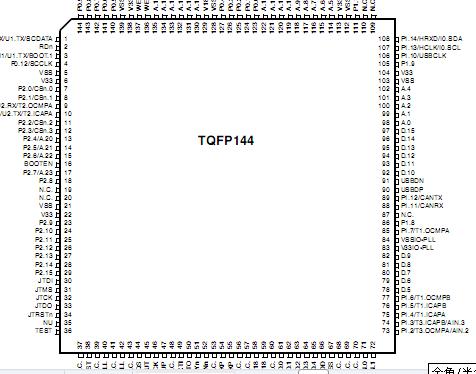

Connection Diagram


Specifications

Symbol Parameter Value Unit
Min Max
V33 Voltage on V33 with respect to ground (VSS) -0.3 +4.0 V
V33IO-PLL Voltage on V33IO-PLL with respect to ground (VSS) -0.3 +4.0 V
V18 Voltage on V18 with respect to ground (VSS) -0.3 +2.0 V
V18BKP Voltage on V18BKP with respect to ground (VSS) -0.3 +2.0 V
AVDD Voltage on AVDD pin with respect to ground (VSS) -0.3 +4.0 V
AVSS Voltage on AVSS with respect to ground (VSS) -0.1 V33 + 0.1 V
VIN Voltage on true open drain pin (P0.10) with respect to ground (VSS) -0.3 +5.5 V
Voltage on any other pin with respect to ground (VSS) -0.3 +4.0
IOV Input current on any pin during overload condition -10 +10 mA
ITDV Absolute sum of all input currents during overload condition   |200| mA
TST Storage Temperature -55 +150 °C
ESD ESD Susceptibility (Human Body Model) 2000 V



Parameters:

Technical/Catalog InformationSTR711FR2T6
VendorSTMicroelectronics
CategoryIntegrated Circuits (ICs)
Program Memory Size256KB (256K x 8 + 16K)
RAM Size64K x 8
Number of I /O30
Package / Case64-LQFP
Speed66MHz
Controller SeriesSTR7
Oscillator TypeInternal
PackagingTray
Program Memory TypeFLASH
EEPROM Size-
Core ProcessorARM7
Data ConvertersA/D 4x12b
Core Size32-Bit
Operating Temperature-40°C ~ 85°C
ConnectivityEBI/EMI, HDLC, I²C, SmartCard, SPI, UART/USART, USB
PeripheralsPWM, WDT
Voltage - Supply (Vcc/Vdd)3 V ~ 3.6 V
Drawing Number*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names STR711FR2T6
STR711FR2T6
497 4513 ND
4974513ND
497-4513
