STR71xF
-
Suppliers
DataSheet
General Description
STR71xF Maximum Ratings
| Symbol | Parameter | Value | Unit | ||
| Min | Max | ||||
| V33 | Voltage on V33 with respect to ground (VSS) | -0.3 | +4.0 | V | |
| V33IO-PLL | Voltage on V33IO-PLL with respect to ground (VSS) | -0.3 | +4.0 | V | |
| V18 | Voltage on V18 with respect to ground (VSS) | -0.3 | +2.0 | V | |
| V18BKP | Voltage on V18BKP with respect to ground (VSS) | -0.3 | +2.0 | V | |
| AVDD | Voltage on AVDD pin with respect to ground (VSS) | -0.3 | +4.0 | V | |
| AVSS | Voltage on AVSS with respect to ground (VSS) | -0.1 | V33 + 0.1 | V | |
| VIN | Voltage on true open drain pin (P0.10) with respect to ground (VSS) | -0.3 | +5.5 | V | |
| Voltage on any other pin with respect to ground (VSS) | -0.3 | +4.0 | |||
| IOV | Input current on any pin during overload condition | -10 | +10 | mA | |
| ITDV | Absolute sum of all input currents during overload condition | |200| | mA | ||
| TST | Storage Temperature | 55 | +150 | °C | |
| ESD | ESD Susceptibility (Human Body Model) | 2000 | V | ||
This product contains devices to protect the inputs against damage due to high static voltages. However, it is advisable to take normal precautions to avoid application of any voltage higher than the specified maximum rated voltages.
For proper operation, it is recommended that VIN and VO be higher than VSS and lower than V33. Reliability is enhanced if unused inputs are connected to an appropriate logic voltage level (V33 or VSS).
STR71xF Features
FLASH - Kbytes
RAM - Kbytes
Peripheral Functions
Operating Voltage
Operating Temp.
Packages
RAM - Kbytes
Peripheral Functions
Operating Voltage
Operating Temp.
Packages

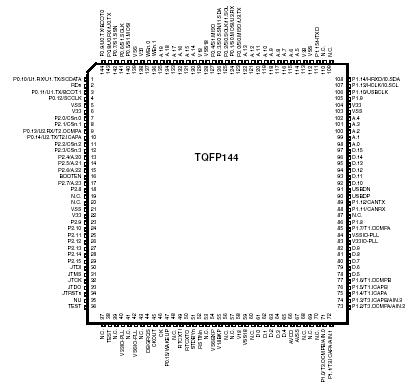

STR71xF Connection Diagram
STR71XF
