STR73xF

Features: Core ARM7TDMI 32-bit RISC CPU 32 MIPS @ 36 MHz Temperature Range Operating temperature range -40 to 105 °C Memories Up to 256 Kbytes FLASH program memory (10,000 cycles endurance, data retention 20 years at 55°C) 16 Kbytes RAM Clock, Reset and Supply Management 4.5 - 5.5V application su...

product image

STR73xF Picture
See larger image
SeekIC No. : 004508683 Detail

STR73xF: Features: Core ARM7TDMI 32-bit RISC CPU 32 MIPS @ 36 MHz Temperature Range Operating temperature range -40 to 105 °C Memories Up to 256 Kbytes FLASH program memory (10,000 cycles endurance, data re...

STR73xF Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
STR73xF
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Core
ARM7TDMI 32-bit RISC CPU
32 MIPS @ 36 MHz
Temperature Range
Operating temperature range -40 to 105 °C
Memories
Up to 256 Kbytes FLASH program memory (10,000 cycles endurance, data retention 20 years at 55°C)
16 Kbytes RAM
Clock, Reset and Supply Management
4.5 - 5.5V application supply and I/O interface
Embedded 1.8V regulator for core supply
Embedded oscillator running from external
4-8MHz crystal or ceramic resonator
Up to 36 MHz CPU freq. with internal PLL
Internal RC oscillator 32kHz or 2MHz software configurable for fast startup and backup clock
Realtime Clock for clock-calendar function
Wakeup Timer driven by internal RC for wakeup from STOP mode
5 power saving modes: SLOW, WAIT,LPWAIT, STOP and HALT modes
Nested interrupt controller
Fast interrupt handling with multiple vectors
64 maskable IRQ with 64 vectors and 16 priority levels
2 maskable FIQ sources
16 external interrupts and up to 32 wake up lines
Up to 112 I/O ports
72/112 multifunctional bidirectional I/O lines
DMA
4 DMA controllers with 4 channels each
Timers
16-bit watchdog timer (WDG)
6/10 16-bit timers (TIM) each with: 2 input captures, 2 output compares, PWM and pulse counter modes
6 16-bit PWM modules (PWM)
3 16-bit timebase timers with 8-bit prescalers
12 Communications Interfaces
2 I2C interfaces
4 UART asynchronous serial communications interfaces
3 BSPI synchronous serial interfaces
Up to 3 CAN interfaces (2.0B Active)
10-bit A/D Converter
12/16 channels
Conversion time: min 3s, range: 0 to 5V
Development Tools Support
JTAG interface


Pinout

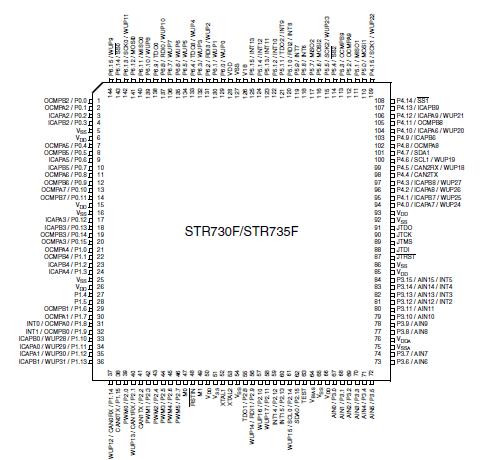

Connection Diagram
