STS01DTP06

Maximum Operating Frequency :
DC Collector/Base Gain hfe Min : 100
Maximum Operating Temperature : + 150 C
Mounting Style : SMD/SMT
Packaging : Reel
Emitter- Base Voltage VEBO : 5 V
Maximum DC Collector Current : 3 A
Collector- Emitter Voltage VCEO Max : 30 V
Transistor Polarity : NPN, PNP
Configuration : Dual Dual Collector
Package / Case : SO N


Features:

·HIGH GAIN
· LOW V_CE(sat)
· SIMPLIFIED CIRCUIT DESIGN
·REDUCED COMPONENT COUNT


Application

· PUSH-PULL OR TOTEM-POLE CONFIGURATION
· MOSFET AND IGBT GATE DRIVING
· MOTOR, RELAY AND SOLENOID DRIVING

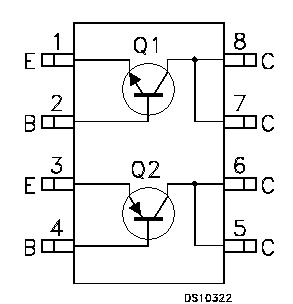

Pinout




Specifications

Symbol	Parameter	NPN	PNP	Unit
VCBO	Collector-Base Voltage (IE = 0)	60	-60	V
VCEO	Collector-Emitter Voltage (IB = 0)	30	-30	V
VEBO	Emitter-Base Voltage (IC = 0)	5	-5	V
IC	Collector Current	3	-3	A
ICM	Collector Peak Current(tp < 5ms)	6	-6	A
IB	Base Current	1	-1	A
IBM	Base Peak Current(tp < 1ms)	2	-2	A
PTOT	Total Dissipation at Tc = 25 single	2		W
PTOT	Total Dissipation at Tc = 25 couple	1.2		W
Tstg	Storage Temperature	-65 to 150
Tj	Max. Operating Junction Temperature	150

Description

The STS01DTP06 is a Hybrid dual NPN-PNP complementary power bipolar transistor manufactured by using the latest low voltage planar technology. The STS01DTP06 is housed in dual island SO-8 package with separated terminals for higher assembly flexibility, specifically recommended to be used in Push-Pull or Totem Pole configuration as post IGBTs and MOSFETs driver.

Parameters:

Technical/Catalog Information	STS01DTP06
Vendor	STMicroelectronics (VA)
Category	Discrete Semiconductor Products
Transistor Type	NPN + PNP (Dual)
Voltage - Collector Emitter Breakdown (Max)	60V
Current - Collector (Ic) (Max)	3A
Power - Max	2W
DC Current Gain (hFE) (Min) @ Ic, Vce	30 @ 3A, 2V
Vce Saturation (Max) @ Ib, Ic	700mV @ 100mA, 2A
Frequency - Transition	-
Current - Collector Cutoff (Max)	1A
Mounting Type	Surface Mount
Package / Case	8-SOIC (3.9mm Width)
Packaging	Cut Tape (CT)
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	STS01DTP06 STS01DTP06 497 4518 1 ND 49745181ND 497-4518-1
