Transistor Polarity
: N-Channel
Mounting Style
: SMD/SMT
Packaging
: Reel
Drain-Source Breakdown Voltage
: 30 V
Maximum Operating Temperature
: + 150 C
Continuous Drain Current
: 4 A
Gate-Source Breakdown Voltage
: +/- 16 V
Configuration
: Single Dual Drain
Resistance Drain-Source RDS (on)
: 55 mOhms
Package / Case
: SO N

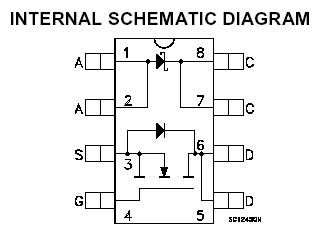

Pinout
Specifications
|
Symbol |
Parameter |
Value |
Unit |
|
VDS |
Drain-source Voltage (VGS = 0) |
30 |
V |
|
VDGR |
Drain- gate Voltage (RGS = 20 k) |
30 |
V |
|
VGS |
Gate-Source Voltage |
± 20 |
V |
|
ID |
Drain Current (continuous) at Tc = 25 |
8 |
A |
|
ID |
Drain Current (continuous) at Tc = 100
|
5 |
A |
|
IDM(`) |
Drain Current (pulsed) |
32 |
A |
|
PTOT |
Total Dissipation at TC = 25°C
|
2.5 |
W |
|
Symbol |
Parameter |
|
Value |
Unit |
|
VRRM |
Repetitive Peak Reverse Voltage |
|
30 |
V |
|
IF(RMS) |
RMS Forward Current |
|
20 |
A |
|
IF(AV) |
Average Forward Current |
TL=125
=0.5 |
3 |
A |
|
IFSM |
Surge Non Repetit ive Forward Current |
tp= 10 ms
Sinusoidal |
75 |
A |
|
IRRM |
Repetitive Peak Reverse Current |
tp = 2 µs
F=1 kHz |
1 |
A |
|
IRSM |
Non Repetitive Peak Reverse Current |
tp=100 µs |
1 |
A |
|
dv/dt |
Critical Rate Of Rise Of Reverse Voltage |
|
10000 |
V/µs |
(`) Pulse width limited by safe operating area.DescriptionThis STS4DNFS30L associates the latest low voltage STripFET™ in n-channel version to a low drop Schottky diode. Such configuration is extremely versatile in implementing, a large variety of DC-DC converters for printers, portable equipment, and cellular phones.
Parameters: | Technical/Catalog Information | STS4DNFS30L |
| Vendor | STMicroelectronics |
| Category | Discrete Semiconductor Products |
| Mounting Type | Surface Mount |
| FET Polarity | N-Channel |
| Drain to Source Voltage (Vdss) | 30V |
| Current - Continuous Drain (Id) @ 25° C | 4A |
| Rds On (Max) @ Id, Vgs | 55 mOhm @ 2A, 10V |
| Input Capacitance (Ciss) @ Vds | 330pF @ 25V |
| Power - Max | 2W |
| Packaging | Tape & Reel (TR) |
| Gate Charge (Qg) @ Vgs | 9nC @ 5V |
| Package / Case | 8-SOIC (3.9mm Width) |
| FET Feature | Diode (Isolated) |
| Drawing Number | * |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | STS4DNFS30L
STS4DNFS30L
497 3227 2 ND
49732272ND
497-3227-2
|
STS4DNFS30L Data Sheet
