Purchase STV0118, In-stock STV0118 From SeekIC.
Package Cooled:2000 D/C:05+
- Table of contents:
STV0118
-
Suppliers
DataSheet
General Description
STV0118 Maximum Ratings
|
Symbol |
Parameter |
Value |
Unit |
|
VDDx |
DC Supply Voltage |
-0.3, 4.0 |
V |
|
VIN |
Digital Input Voltage |
-0.3, VDD + 0.3 |
V |
|
VOUT |
Digital Output Voltage |
-0.3, VDD + 0.3 |
V |
|
IREF |
Analog Input Reference Current |
2 |
mA |
|
Toper |
Operating Temperature |
0, +70 |
|
|
Tstg |
Storage Temperature |
-40, +150 |
|
|
Ptot |
Total Power Dissipation |
500 |
mW |
STV0118 Typical Application
SATELLITE, CABLE & TERRESTRIALDIGITAL TV DECODERS, MULTIMEDIATERMINALS, DVDPLAYERS

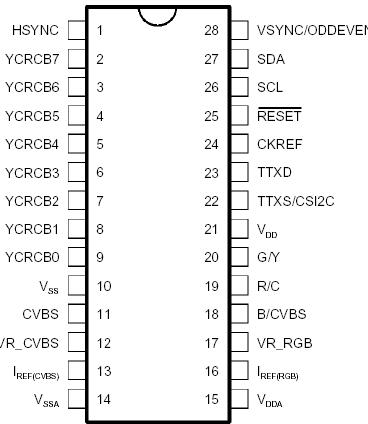

STV0118 Connection Diagram
STV0118
PDF/DataSheet Download
- Datasheet: STV0118
- File Size: 398170 KB
- Manufacturer: STMICROELECTRONICS [STMicroelectronics]
- Click here to Download
