Symbol |
Parameter |
Value |
Unit |
VDD_3.3 V |
Pad Power Supply Voltage |
TBD |
V |
VDD |
Core Level Power Supply Voltage |
TBD |
V |
VI(1) |
Voltage on Input Pins |
-0.5, VDD_3.3 V + 0.5 |
V |
VO(1) |
Voltage on Output Pins |
-0.5, VDD_3.3 V + 0.5 |
V |
Tstg |
Storage Temperature |
-40, +150 |
°C |
Toper |
Operating Ambient Temperature |
-10, +70 |
°C |
Tj |
Junction Temperature |
+125 |
°C |

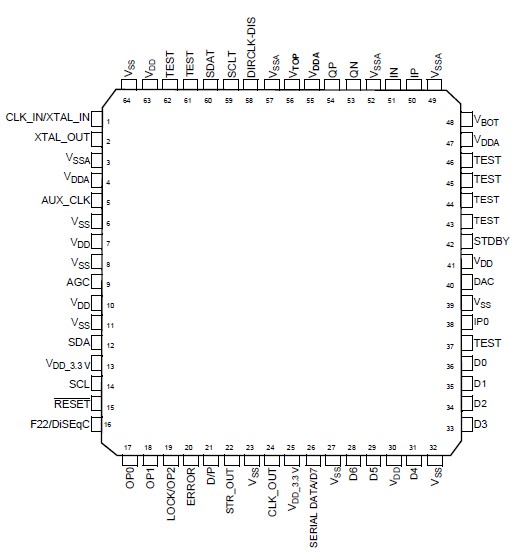

The STV0299 Satellite Receiver with FEC is a CMOS single-chip multistandard demodulator for digital satellite broadcasting. It consists of two A/D converters for I-input and Q-input, a multistandard QPSK and BPSK demodulator, and a forward error correction (FEC) unit having both an inner (Viterbi) and outer (Reed-Solomon) decoder. The FEC unit is compliant with the DVB-S and DSSTM specifications. Processing is fully digital. It integrates a derotator before the Nyquist root filter, allowing a wide range of offset tracking. The high sampling rate facilitates the implementation of low-cost, direct conversion tuners.
A variety of configurations and behaviours of STV0299 can be selected through a bank of control/configuration registers via an I2C or parallel bus. The chip outputs MPEG Transport Streams and interfaces seamlessly to the Packet Demultiplexers embedded in ST's ST20-TPx or STi55xx. High sampling frequency (up to 90MHz) considerably reduces the cost of LPF of direct conversion tuners.
The multistandard capability associated with a broad range of input frequency operations makes it easy-to-use. Its low power consumption, small package and optional serial output interface makes it perfect for embedding into a tuner.
