STV0502

Features: ·SERIAL BUS CONTROLVIDEO· CORRELATED DOUBLE SAMPLING OF THE CCD SIGNAL· DIGITALLY CONTROLLED VARIABLE AMPLI. FIER AND BLACK CLAMP LEVEL·8 BITS PIXEL RATE ADCAUDIO· MICROPHONE PREAMP WITH SWITCHABLE AGC (RANGE 34dB - 60dB) OR FIXED GAINPinoutSpecifications Symbol Parameter Va...

product image

STV0502 Picture
See larger image
SeekIC No. : 004508967 Detail

STV0502: Features: ·SERIAL BUS CONTROLVIDEO· CORRELATED DOUBLE SAMPLING OF THE CCD SIGNAL· DIGITALLY CONTROLLED VARIABLE AMPLI. FIER AND BLACK CLAMP LEVEL·8 BITS PIXEL RATE ADCAUDIO· MICROPHONE PREAMP WITH S...

STV0502 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
STV0502
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·SERIAL BUS CONTROL

VIDEO
· CORRELATED DOUBLE SAMPLING OF THE CCD SIGNAL
· DIGITALLY CONTROLLED VARIABLE AMPLI. FIER AND BLACK CLAMP LEVEL
 ·8 BITS PIXEL RATE ADC

AUDIO
· MICROPHONE PREAMP WITH SWITCHABLE AGC (RANGE 34dB - 60dB) OR FIXED GAIN


Pinout

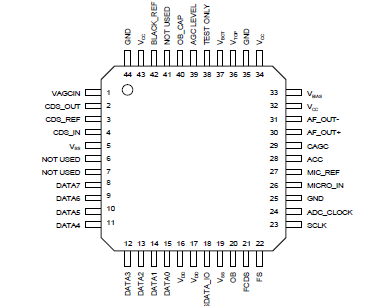

Connection Diagram


Specifications

Symbol
Parameter
Value
Unit
VDD, VCC
 Supply Voltage
-0.5, 7
V
VI
 Digital Input Pin Voltage
-0.5, VDD + 0.5
V
II
 Digital Input Pin Current
1.6
mA
Tstg
 Storage Temperature
+80
Toper
 Operating Temperature
0, +70
Tlead
 Lead Temperature (10s Max.)
+260

ESD : The STV0502 withstands 2kV in Human Body Model and 100V in Machine Model for all Pins
         versus VDD and VSS.


Description

The chip STV0502 integrates the analog functions needed in a CCD Video Camera, more particularly for videoconferencing purpose.

The STV0502 CCD signal  is sampled, amplified to a useful level and digitized by an 8 bits ADC. The gain of the amplifier and the black level clamp can be adjusted by a serial bus.

The audio microphone preamplifier STV0502 allows a microphone to be connected to the chip, which outputs a differential audio line level signal ready for digital conversion or straight amplification. The preamplifier incorporates an AGC to adapt to the income signal level. The AGC is switchable ON/OFF by the serial interface
