Part Number: STV300NH02L



MFG: PowerSO10POWER1/SIGNALSIDE1

Package Cooled: 7850

D/C: ST

Description: This product utilizes the latest advanced design rules of ST's proprietary STripFET™ technology. This is suitable...


Urgent Purchase

STV300NH02L General Description


This product utilizes the latest advanced design rules of ST's proprietary STripFET™ technology. This is suitable for high current OR-ing application.



STV300NH02L Maximum Ratings

Symbol Parameter Value Unit
VDS
VGS
ID(1)
ID(1)
IDM(2)
PTOT(3)		 Drain-source voltage (vgs = 0)
Gate-source voltage
Drain current (continuous) at TC = 25°C
Drain current (continuous) at TC = 100°C
Drain current (pulsed)
Total dissipation at TC = 25°C		 24
± 20
280
200
1120
300		 V
V
A
A
A
W
  Derating factor 2 W/°C
EAS (4) Single pulse avalanche energy 2296 mJ
Tstg
Tj		 Storage temperature
Operating junction temperature		 -55 to 175 °C
1. This value is limited by package
2. Pulse with limited by safe operating area
3. This value is rated according to Rthj-c
4. Starting Tj = 25°C, ID = 60A, VDD = 20V

STV300NH02L Features

RDS(on)*Qg industry's benchmark
Conduction losses reduced
Low profile, very low parasitic inductance
Switching losses reduced

STV300NH02L Typical Application

Switching application
OR-ing
Specially designed and optimized for high efficiency DC/DC converters.

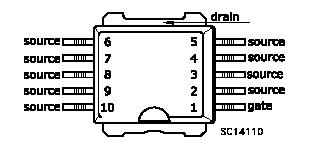

STV300NH02L Connection Diagram

STV300NH02L Connection Diagram
