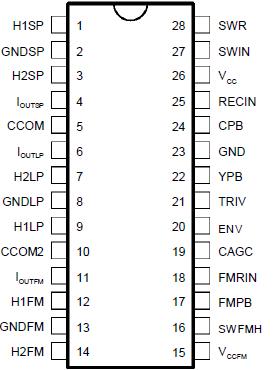

PinoutSpecifications Symbol Parameter Value Unit VCC Power Supply Voltage 6 v Tj Junction Temperature 150 Toper Operating Temperature 0, +70 DescriptionSTV5728is intended for 4 headsVCR applications with HIFI. STV5728 includesall the electrical ...
STV5728: PinoutSpecifications Symbol Parameter Value Unit VCC Power Supply Voltage 6 v Tj Junction Temperature 150 Toper Operating Temperature 0, +70 Desc...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
PinoutDescriptionThe STV5730A-1 is designed as one kind of multistandard on-screen display for vcr...
Symbol |
Parameter |
Value |
Unit |
VCC |
Power Supply Voltage |
6 |
v |
Tj |
Junction Temperature |
150 |
|
Toper |
Operating Temperature |
0, +70 |
STV5728is intended for 4 headsVCR applications with HIFI. STV5728 includesall the electrical functions necessary to achieveplay-backand record processing.
Record or PlaybackMode can be selected through SWR Pin. SWH allows to select the video head input (H1SP or H2SP,H1LP or H2LP), whileSWM will select the mode SP or LP. The SWFMH will selecttheFMinputheadsin Playbackandwill mute the HIFI record amplifier in Record Mode.
