Features:

·A CHARACTER GENERATOR WITH ASCII RAM AND CHARACTER ROM :- 128 characters - 12 dots x 18 lines character composition--11 rows x 28 characters page composition
·ACCURATE INTERNAL BANDGAP VOLTAGE REFERENCE
·LINE LOCKEDPLL
·VIDEO TIMING GENERATOR
·INPUT CVBS CLAMP AND SYNC EXTRACTOR
·VERTICALSYNCSEPARATOR
·INPUT CVBS SYNC RE-INSERTION
·INPUT CVBS PRESENCE DETECTOR
·PAL/NTSCCHROMA ENCODER
·DEDICATED PINS FOR LUMA AND CHROMA EXTERNAL FILTERING
·GAIN ON CVBS OUTPUT FOR EITHER 0dB OR 6dB CAPABILITY
·MULTISTANDARD TRANSLUCENT MIXED MODE
·OPAQUEMIXED MODE
·NORMAL FULL PAGE MODE
·VIDEO FULL PAGE MODE
·SUITABLE FOR S-VHS
·THREE DIFFERENT MARKERS CAN BE GENERATED SIMULTANEOUSLY
·THREE WIRE SERIAL INTERFACE FOR MICROPROCESSOR CONTROL


Pinout

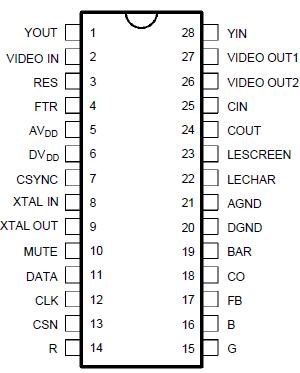

Connection Diagram


Specifications

Symbol
Parameter
Value
Unit
DVDD
 Digital Supply Voltage
7
V
AVDD
 Analog Supply Voltage
7
V
Tj
 Junction Temperature
150



Description

The STV5730 IC is intended to be used in VCR,Satellitereceiver and PAY-TV systemsfor CVBS or R/G/B text/graphics insertion.
