STV5730A: Multimedia Misc On-Screen Display

STV5730A Data Sheet

Get Latest Price

Part Number:: STV5730A
Mfg:: STMicroelectronics
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2025/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

STV5111 evaluate
Features: · Bandwidth : 6MHz typical· Supply Voltage : 200V typical· Rise and Fall Time : 60ns TYP...
STV5180 evaluate
PinoutSpecifications Symbol Parameter Value Unit VCC Supply Voltage 6 ...
STV5342 evaluate
Features: `COMPLETE TELETEXT DECODER INCLUDING ON-CHIP 4 PAGES MEMORY, REDUC ING EMC RADIATIONS`UP...

Product Details

Quick Details

Type :	Satellite Receiver	Package / Case :	SO
Packaging :	Tube

Description

Number of Channels :
Conversion Rate :
Resolution :
Packaging : Tube
Package / Case : SO
Type : Satellite Receiver

Features:

·A CHARACTER GENERATOR WITH ASCII RAM AND CHARACTER ROM :- 128 characters - 12 dots x 18 lines character composition .- 11 rows x 28 characters page composition
·ACCURATE INTERNAL BANDGAP VOLTAGE REFERENCE
·.LINE LOCKED PLL .
·VIDEO TIMING GENERATOR
·INPUT CVBS CLAMP AND SYNC EXTRAC TOR .
·VERTICAL SYNC SEPARATOR .
·INPUTCVBS SYNC RE-INSERTION
·INPUTCVBS PRESENCE DETECTOR
·PAL/NTSCCHROMA ENCODER
·DEDICATED PINS FOR LUMAAND CHROMA EXTERNAL FILTERING
·GAIN ON CVBS OUTPUT FOR EITHER 0dB OR 6dB CAPABILITY
· MULTISTANDARD TRANSLUCENT MIXED MODE .
·OPAQUEMIXED MODE
·.NORMAL FULL PAGEMODE .
·VIDEO FULL PAGE MODE .
·SUITABLE FOR S-VHS
·THREE DIFFERENT MARKERS CAN BE .GENERATED SIMULTANEOUSLY
·THREE WIRE SERIAL INTERFACE FOR MICROPROCESSOR CONTROL

Pinout

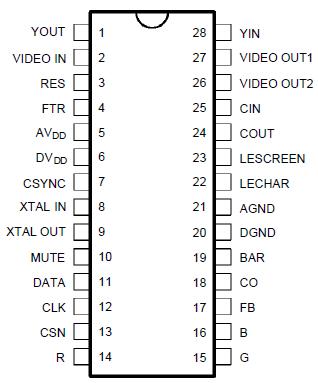

Connection Diagram

Specifications

Symbol	Parameter	Value	Unit
DV_DD	Digital Supply Voltage	7	V
AV_DD	Analog Supply Voltage	7	V
T_j	Junction Temperature	150

Description

The STV5730A IC is intended to be used in VCR,Satellite receiver and PAY-TV systems for CVBS or R/G/B text/graphics insertion.
